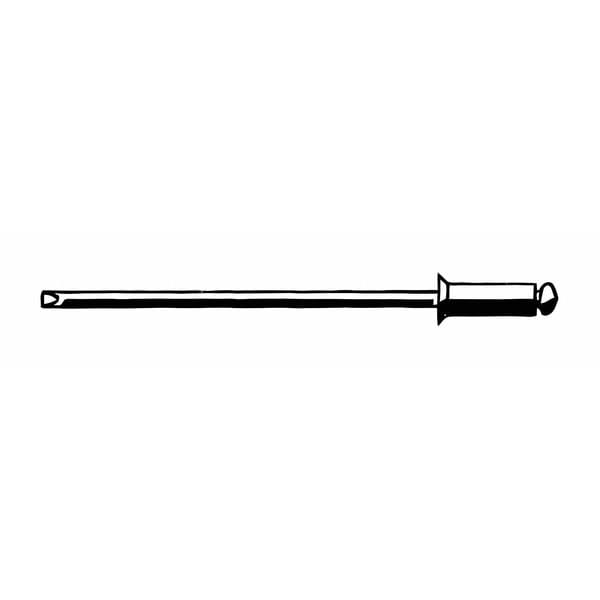

Blind Rivet, Countersunk Head, 3/16 in Dia., 11/16 in L, Aluminum Body, 250 PK
Mfr # U34128.018.6668
Zoro # G2794289
product price: $10.15
/pk 250, $0.04/ea
$10.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Head Type Countersunk
- Body Material Aluminum
- Mandrel Material Steel
- Rivet Diameter 3/16 in
- Grip Range 0.315 in to 0.500 in
Product Information
- Brand Zoro Select
- MFR # U34128.018.6668
- Zoro # G2794289
- Country of Origin Multiple
- Category Blind Rivets
Dimensions
| Rivet Diameter | 3/16 in |
| Body Length | 11/16 in |
| Head Dia. | 0.335 in to 0.361 in |
| Head Height | 0.05 in |
| Hole Size | 0.192 in to 0.196 in |
| Drill Size | #11 |
| Shank Diameter | 0.188 in |
| Head Diameter Tolerance | +/-0.019 in |
| Overall Length | 2 in |
| Maximum Hole Diameter | 0.196 in |
| Head Diameter | 11/32 in |
| Body Length Tolerance | -0.004/+0.020 in |
| Minimum Hole Diameter | 0.192 in |
Details
Description
Blind Rivet, System of Measurement Inch, Overall Length 2 in, Body Length 11/16 in, Shank Diameter 0.188 in, Product Type Blind Rivet, Body Material Aluminum, Finish Plain, Head Type Countersunk, Head Diameter 11/32 in, Head Angle 120 Degrees , Shear Strength 292 lb, Tensile Strength 471 lb, Maximum Hole Diameter 0.196 in, Minimum Material Thickness 5/16 in, Maximum Material Thickness 1/2 in, Material Grade/Class IFI-116-19, Mandrel Material Steel, Features Not Applicable, Color Gray
