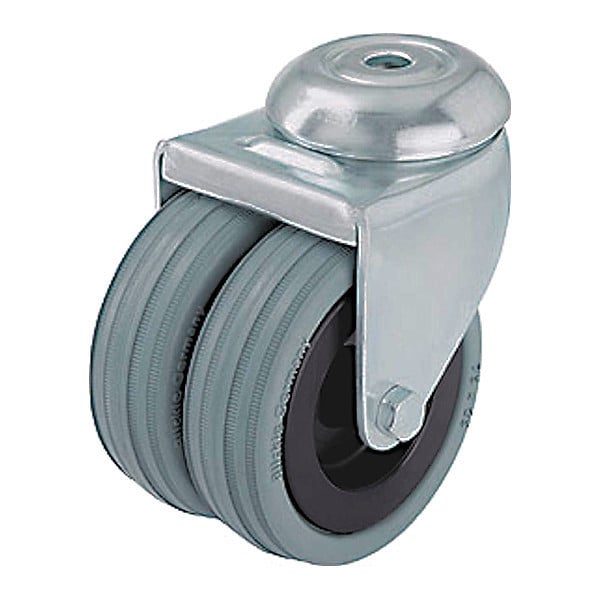

Zoro Select Bolt-Hole Caster, 2"dia, Swivel, Rubber LMDA-VPA 50G - main

Bolt-Hole Caster, 2"dia, Swivel, Rubber

  • Mfr # LMDA-VPA 50G

  • Zoro # G4549122

product price: $12.39
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
150 lb
Wheel Dia.
2 in
Wheel Width
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LMDA-VPA 50G
Zoro #
G4549122
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
2 in
Wheel Width
3/4 in
Mounting Height
2 3/4 in
Mounting Bolt Dia.
3/8 in
Overall Height
2 11/16 in
Caster Thread Size
M8
Bolt Hole Dia.
3/8 in
Thread Size
M8
Tire Thickness
1/8 in

Details

Item
Bolt-Hole Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
150 lb
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Plain
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Non-Marking
Yes
Number of Wheels
2
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Nylon
Core Color
Black
Application
Racks, Carts
Features
Noise Reduction, Reduced Swivel Forces
Standards
DIN EN 12530
Caster Wheel Shape
Twin Wheel
Caster Core Material
Nylon
Caster Stem Type
Threaded Bolt Hole
Replacement Wheel
Mfr. No. VPA 50/8G
Caster Temp. Range Available
Yes
Caster Brake Included
No
Caster Wheel Bearings
Plain
Wheel Color
Gray
Caster Raceway
Double Ball
Caster Load Rating Range
Light-Duty
System of Measurement
Inch
Caster Wheel/Tread Material
Rubber
Caster Temp. Range
-20 Degrees to 180 Degrees F
Swivel Raceway Type
Double Ball
Load Rating Range
0 to 299 lb
Tread Shape
Twin Wheel
Operating Temperature Range
-20 Degrees to 180 Degrees F
Wheel/Tread Hardness
80 Shore A
Wheel/Tread Color
Black
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Operating Temperature - Maximum
140 Degrees F
Compatible Wheel Manufacturer Model Number
VPA 50/8G
Operating Temperature - Minimum
-5 Degrees F
Load Capacity - Maximum
150 lb
Wheel Hardness Rating
80 Shore A

Description

Bolt-Hole Caster, 3/8 in Bolt Hole Dia., 3/8 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 0 to 299 lb Load Rating Range, 150 lb Load Rating, 2 Number of Wheels, Plain, 2 7/10 in Mounting Height, 2 in Wheel Dia., 3/4 in Wheel Width, Rubber Wheel/Tread Material, 80 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
