  11. Bolt Hole Caster, 7-7/8" Wheel dia.

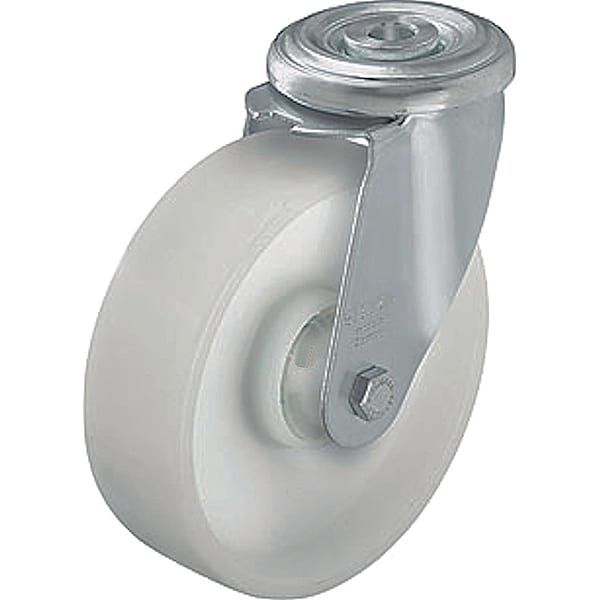

Zoro Select Bolt Hole Caster, 7-7/8" Wheel dia. LER-PO 200R - main

Bolt Hole Caster, 7-7/8" Wheel dia.

  • Mfr # LER-PO 200R

  • Zoro # G8518078

product price: $55.55
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
660 lb
Wheel Dia.
200 mm
Wheel Width
50 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LER-PO 200R
Zoro #
G8518078
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
200 mm
Wheel Width
50 mm
Mounting Height
9 1/4 in
Mounting Bolt Dia.
M12
Bolt Hole Dia.
1/2 in
Overall Height
195 mm
Swivel Radius
154 mm

Details

Item
Swivel Hollow Kingpin Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
660 lb
Wheel/Tread Material
Nylon
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Roller
Caster Brake Type
No Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Nylon
Core Color
White
Application
Retail, Industrial, Commercial, Corrosion Resistance
Features
Push/Pull Force Reduction
Standards
RoHS, ICWM
Caster Wheel Bearings
Roller
Caster Temp. Range Available
Yes
System of Measurement
Metric
Caster Wheel/Tread Material
Medium Heavy Duty Nylon
Caster Load Rating Range
Medium Duty
Wheel Color
White
Caster Brake Included
No
Frame Material
Steel
Caster Wheel Shape
Standard
Caster Raceway
Double Ball
Caster Core Material
Nylon
Caster Stem Type
Hollow Kingpin
Caster Temp. Range
-25 Degrees To 80 Degrees C
Replacement Wheel
Mfr. No. PO 200/20R
Tread Color
White
Tread
Standard
Caster Mounting Type
Hollow Kingpin
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Operating Temperature Range
-20 Degrees to 180 Degrees F
Wheel/Tread Hardness
70 Shore D
Wheel/Tread Color
White
Caster Swivel Lock Type
No Lock Included
Extended Lead
No
Caster Break Type
No Brake Included
ESD Conductive
No
Series
LER Series
Load Capacity
300 kg
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
Caster Features
Corrosion-Resistant, Easy Turn, Maintenance-Free
Load Capacity - Maximum
660 lb
Operating Temperature - Minimum
-15 Degrees F
Wheel Hardness Rating
70 Shore D
Compatible Wheel Manufacturer Model Number
PO 200/12R
Operating Temperature - Maximum
175 Degrees F

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 300 to 999 lb Load Rating Range, 660 lb Load Rating, 1 Number of Wheels, Roller, 9 1/5 in Mounting Height, 6 7/8 in Wheel Dia., 2 in Wheel Width, Nylon Wheel/Tread Material, 70 Shore D Wheel/Tread Hardness, Hard, Yes Non-Marking
