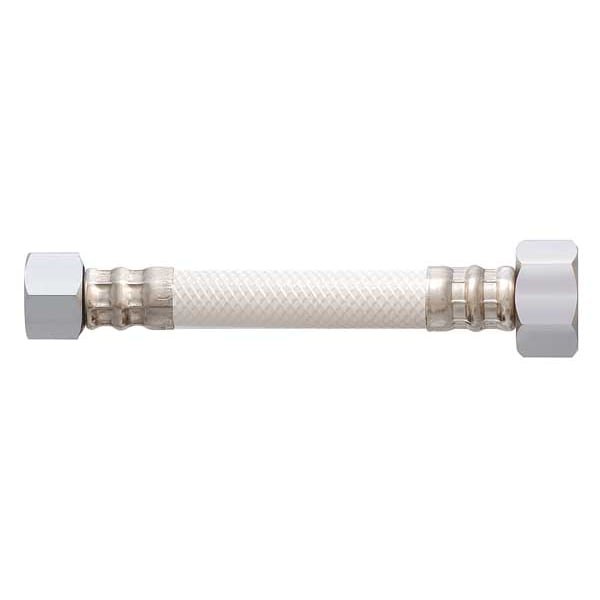

Braided Connector, 1/2 COMPx1/2 FIPx36 L

product price: $5.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material of Construction Braided Nylon
  • Hose Inside Dia. 3/8 in
  • Outside Dia. (In.) 1/2
  • Outlet (In.) 1/2
  • Inlet Size (In.) 1/2
See all product information

Product Information

Dimensions

Hose Inside Dia. 3/8 in
Outside Dia. (In.) 1/2
Inlet Size (In.) 1/2
Length (In.) 36
Hose Fitting B Size 1/2 in
Hose Fitting A Size 1/2 in
Fitting Size 1/2 in x 1/2 in
Hose Length 36 in
Hose Outside Dia. 1/2 in
Bend Radius Not Rated

Details

Material of Construction Braided Nylon
Outlet (In.) 1/2
Inlet Type Compression
Outlet Type FIP
Application Faucet
Inner Core PVC
Nut Material Brass
Item Water Connector
Finish Nickel Plated
Standards IAPMO, NSF61
Operating Temp. (F) 175
Max. Working Pressure (PSI) 250
Hose Tube Material PVC
Hose Cover Material PVC
Hose Fitting A Material Brass
Max. Working Pressure @ 70 F 250 psi
Fitting Type F Compression x FIP
Hose Fittings Brass 1/2 in F Compression x Brass 1/2 in FIP
Hose Fitting A Type F Compression
Hose Fitting B Type FIP
Hose Configuration Coupled Assembly
Fitting Material Brass x Brass
Hose Fitting B Material Brass
Hose Color White
For Use With Water Connector
Temp. Range 40 Degrees to 175 Degrees F

Description

Water Connector, Hose Inside Dia. 3/8 in, Hose Outside Dia. 1/2 in, Hose Length 36 in, Hose Color White, Hose Tube Material PVC, Hose Cover Material PVC, Max. Working Pressure @ 70 F 250 psi, Temp. Range 40 Degrees to 175 Degrees F, Standards IAPMO, NSF61, Bend Radius Not Rated, Hose Fitting A Material Brass, Hose Fitting B Material Brass, Hose Fitting A Type F Compression, Hose Fitting B Type FIP, Hose Fitting A Size 1/2 in, Hose Fitting B Size 1/2 in, Hose Configuration Coupled Assembly
