Carriage Bolt, Square Neck, 1/4"-20, 1-3/4 in L, 18-8 Stainless Steel, Plain, 25 PK
Mfr # 1VB84
Zoro # G2861774
CAD Available
product price: $8.59
/pk 25, $0.34/eaKey Features

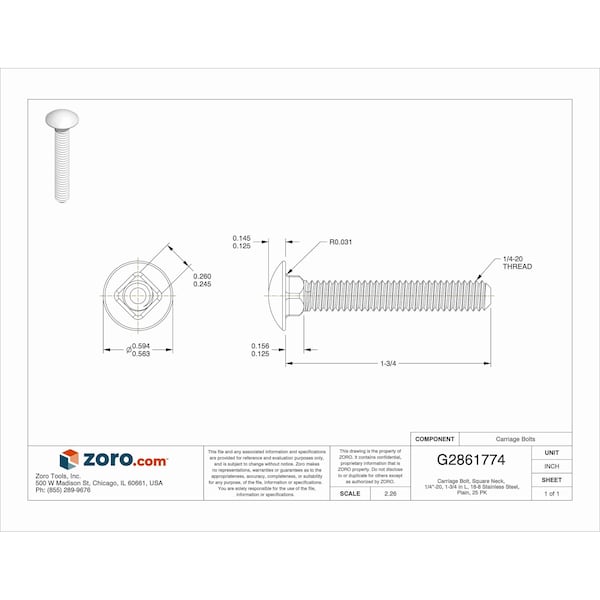

CAD Drawing
Thread Size
1/4"-20
Material
18-8 Stainless Steel
Finish
Plain
Neck Type
Square
Thread Type
UNC (Coarse)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1VB84
Zoro #
G2861774
UPC #
190735944400
Country of Origin
Taiwan, Province of China
Dimensions
Thread Size
1/4"-20
Fastener Length
1-3/4 in
Head Height
0.125 in to 0.145 in
Head Dia.
0.563 in to 0.594 in
Square Width
0.245 in to 0.260 in
Square Height
0.125 in to 0.156 in
Drill Size
17/64 in
Description
Carriage Bolt, Inch, Neck Type Square, Basic Material Stainless Steel, Material Grade 18-8, Fastener Finish Plain, Dia./Thread Size 1/4 In.-20, Fastener Length 1 3/4 in, Fastener Thread Direction Right Hand, Fastener Thread Type UNC (Coarse), ANSI/ASME B18.5, RoHS Compliant, Drill Size 17/64 in, Head Dia. 0.563 in to 0.594 in, Head Height 0.125 in to 0.145 in, Head Type Round, Square Height 0.125 in to 0.156 in, Square Width 0.245 in to 0.260 in, Tensile Strength 100 to 150 KSI
