  9. CFL Ballast, Electronic, 87W, 120 to 277V (Formerly LumaPro)

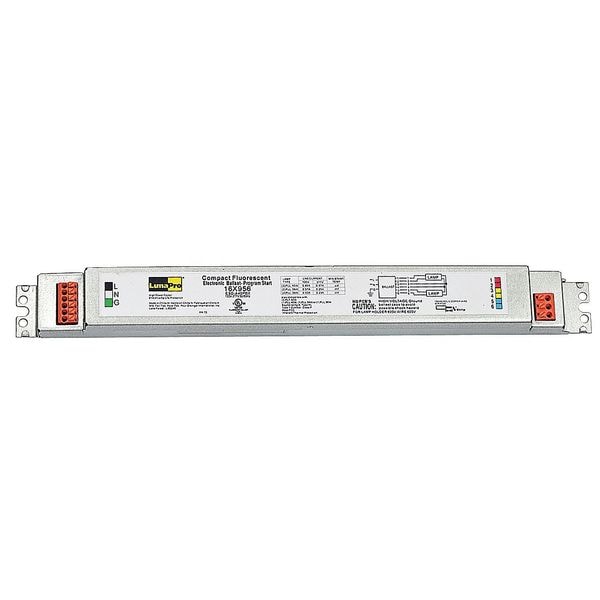

Zoro Select CFL Ballast, Electronic, 87W, 120 to 277V (Formerly LumaPro) 16X956 - main

CFL Ballast, Electronic, 87W, 120 to 277V (Formerly LumaPro)

  • Mfr # 16X956

  • Zoro # G4596891

product price: $32.35
/ea

Key Features

Ballast Item
CFL Ballast
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent
Ballast Max. Lamp Watts
40
Ballast Voltage
120-277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16X956
Zoro #
G4596891
UPC #
190735565506
Country of Origin
Taiwan, Province of China

Dimensions

Dimension Reference
D6
Width
1 3/8 in
Length
12 7/8 in
Height
1 1/8 in

Details

Ballast Item
CFL Ballast
Ballast Type
Electronic
Ballast Lamp Type
Compact Fluorescent
Ballast Max. Lamp Watts
40
Ballast Voltage
120-277
Ballast Max. Number of Lamps
2
Ballast Start Type
Programmed
Ballast Dimming
No
Ballast Dimming Type
No Dimming
Input Watts
87W
Min. Starting Temp.
-4 Degrees F
Number of F40BX Lamps
1 or 2
Ballast Factor
0.88
Light Output
Normal
Ballast Lamp Watts
40
Power Factor
0.97
Wiring Type
Series
Ballast Family
LumaPro(R)
Number of F39BX Lamps
1 or 2
Item
CFL Ballast
Base Type
4 Pin
Total Harmonic Distortion
10 %
Fixture Ballast Type
Electronic
Ballast Bulb Type
PL-L
Dimming Range
No Dimming
Max. Operating Temp.
194 Degrees F
Operating Amps @ 120V
0.89 A
Input Voltage
120 to 277V AC
Frequency
50/60 Hz
Dimming Type
No Dimming
Thermal Protection
Class P
Max. Bulb Watts
40 W
Brand and Series
LumaPro(R)
Dimming Method
No Dimming
CA Title 20 Compliant
No
Number of Bulbs Supported
1, 2
Starter Required
No
Dimming
No
Lamp Types Supported
(1 or 2) F32BX, (1 or 2) F36BX, (1 or 2) F39BX, (1 or 2) F40BX
Initial Lumens
Standard
Bulb Base Type
4-Pin
Voltage
120 to 277
Standards
UL935

Description

Formerly LumaPro.

LumaPro(R), Electronic, CFL Ballast, Ballast Start Type Programmed, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 40 W, Ballast Bulb Type PL-L, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, CA Title 20 Compliant No, Min. Starting Temp. -4 Degrees F
