  5. LED Driver, 150W, 0.70 ADC, 347/480VAC

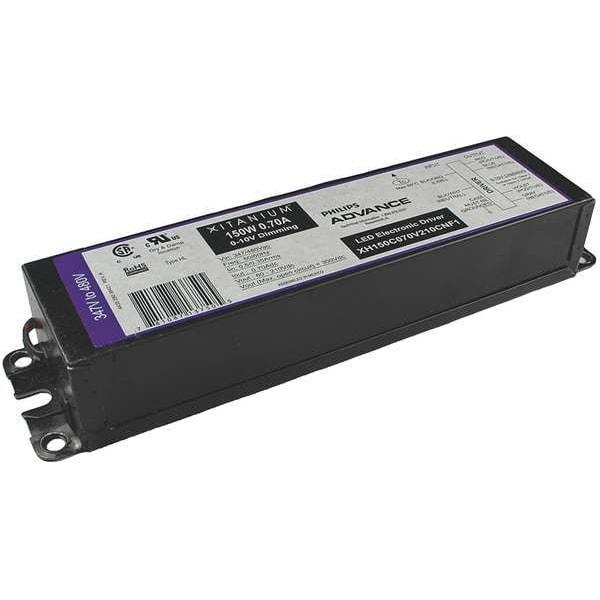

Advance LED Driver, 150W, 0.70 ADC, 347/480VAC XH150C070V210CNF1 - main

LED Driver, 150W, 0.70 ADC, 347/480VAC

  • Mfr # XH150C070V210CNF1

  • Zoro # G2671000

product price:  $124.99
/ea
Free Shipping & Returns

Key Features

Power Output
150W
Environmental Rating
Damp Location
Length
8 3/8 in
Width
2 5/16 in
Height
1 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XH150C070V210CNF1
Zoro #
G2671000
UPC #
00781087135044
Country of Origin
Mexico

Dimensions

Length
8 3/8 in
Width
2 5/16 in
Height
1 1/2 in

Details

Item
Led Driver
Power Output
150W
Environmental Rating
Damp Location
For Use With
LED Lighting
Input Voltage
347 to 480V AC
Ballast Dimming
Yes
Green Certification or Other Recognition
UL Environment Claims Validated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Ballast Dimming Type
0-10V Dimming
Input Current
0.50/0.35AAC
Input Power
167 W
Ambient Temp. Range
-40 Degrees to 131 Degrees F
Power Factor
Greater Than 0.95
Output Current
0.70 A
Output Voltage
60 to 210V DC
Ballast Item
LED Driver
Total Harmonic Distortion
15 %
Case Form Factor
Long
Dimming Method
0-10V
Driver Class
Class 2
Dimming Range
100% to 10%
Driver Mounting Location
Within Fixture
Standards
UL1012, UL879, UL935
Profile
Standard Profile
Dimming Type
Full Continuous Dimming
Brand and Series
Xitanium
Max. Case Temp.
176 Degrees F
Ouput Constant
Constant Current
Output Technology
Programmable
Intended LED Usage
Fixture Array
Dimming
Yes
Number of Fixtures
1
Power Output - Minimum
4.2 W
Max. Ambient Temp.
131 Degrees F
Input Current - Maximum
0.5 A
Power Factor - Minimum
0.95
Input Current - Minimum
0.35 A
Power Output - Maximum
150 W
Min. Ambient Temp.
-40 Degrees F

Description

Xitanium, LED Driver, Intended LED Usage Fixture Array, Number of Bulbs Supported Not Applicable, 347 to 480V AC Input Voltage, 60 to 210V DC Output Voltage, 0.50/0.35AAC Input Current, 0.70 A Output Current, 167 W Input Power, 150W Power Output, 8 3/8 in Length, 2 5/16 in Width, 1 1/2 in Height, Case Form Factor Long, Standard Profile, Class 2
