Zoro Select Commercial Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location 4CFW3 - main
Shop ZORO SELECT

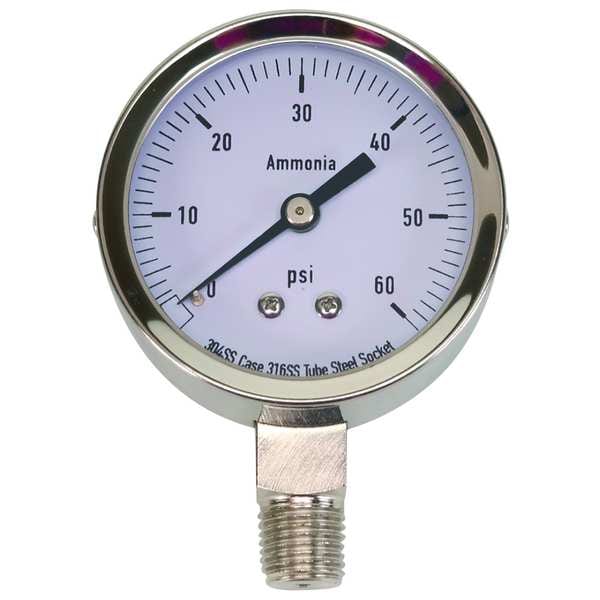

Commercial Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4CFW3

  • Zoro # G0742445

product price:  $14.19
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4CFW3
Zoro #
G0742445
UPC #
190735502747
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Agriculture
Gauge Case Material
304 Stainless Steel
Lens Material
Glass
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Silver
Smallest Graduation
1 psi
Calibration Certificate Included
No
Gauge Application
Agricultural Ammonia
Gauge Primary Range Smallest Graduation
1
Socket Material
Steel
Case Material
304 Stainless Steel
Connection Type
MNPT
Accuracy Scale
Mid-Scale
Vibration Resistance
None
Cleaned for Oxygen Service
No
Removable Bezel
No
Process Connection Gender
Male
Non-Sparking
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Scale Type
Single
Gauge Case Liquid
None
Primary Scale Minor Graduations
1, 2
Includes Mounting Hardware
No
Dial Color
White
Includes Calibration Certificate
No
Dry Dampening Feature
None
Freeze Resistant Movement
No
Bezel Material
Screw-fixed Stainless Steel
Field Fillable
No
Pressure Range Type
Pressure
Sensor Material
316 Stainless Steel
Pressure Gauge Type
Commercial Pressure Gauge
Includes Vent Plug
No
Maximum Pressure
60
Operating Temperature Range
-40 Degrees to 150 Degrees F
Case Liquid
None
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
60 psi

Description

Commercial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Silver, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 60, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
