  5. Commercial Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

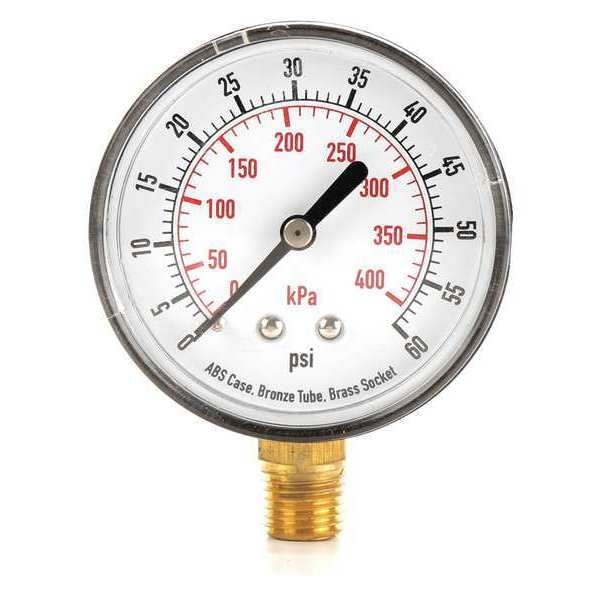

Zoro Select Commercial Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location 4FLV8 - main

Commercial Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 4FLV8

  • Zoro # G0038911

product price:  $6.59
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
Test and Measurement
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4FLV8
Zoro #
G0038911
UPC #
190735507254
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
ABS Plastic
Lens Material
Acrylic
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
1
Calibration Certificate Included
No
Gauge Application
General-Purpose Case
Gauge Secondary Range Values
0 to 400
Smallest Graduation
1 psi
Case Color
Black
Case Material
ABS Plastic
Socket Material
Brass
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Removable Bezel
No
Dial Color
White
Includes Mounting Hardware
No
Accuracy Scale
Mid-Scale
Includes Vent Plug
No
Freeze Resistant Movement
No
Includes Calibration Certificate
No
Vibration Resistance
None
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Secondary Pressure Range
0 to 400
Non-Sparking
No
Cleaned for Oxygen Service
No
Field Fillable
No
Sensor Material
Bronze
Secondary Scale Units
kPa
Gauge Case Liquid
None
Dry Dampening Feature
None
Primary Scale Minor Graduations
1
Scale Type
Dual
Bezel Material
Crimped Stainless Steel
Pressure Range Type
Pressure
Process Connection Gender
Male
Pressure Gauge Type
General Purpose Dial Pressure Gauge
Maximum Pressure
60
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Commercial Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Nominal Dial Size 2 1/2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Bronze, Socket Material Brass, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type Commercial Pressure Gauge
