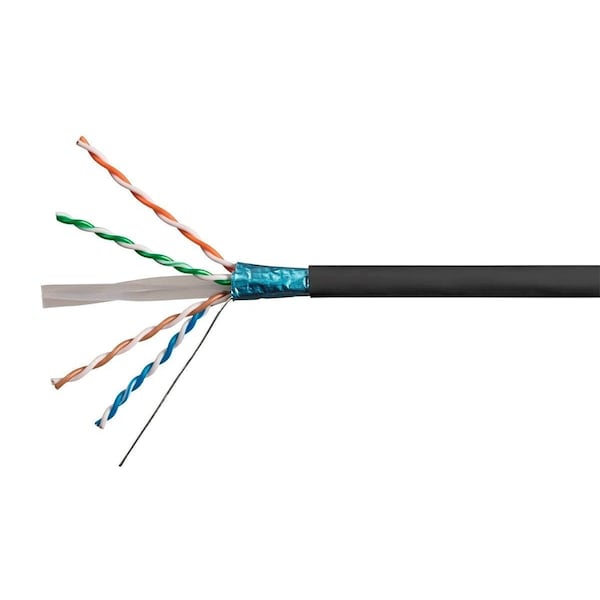

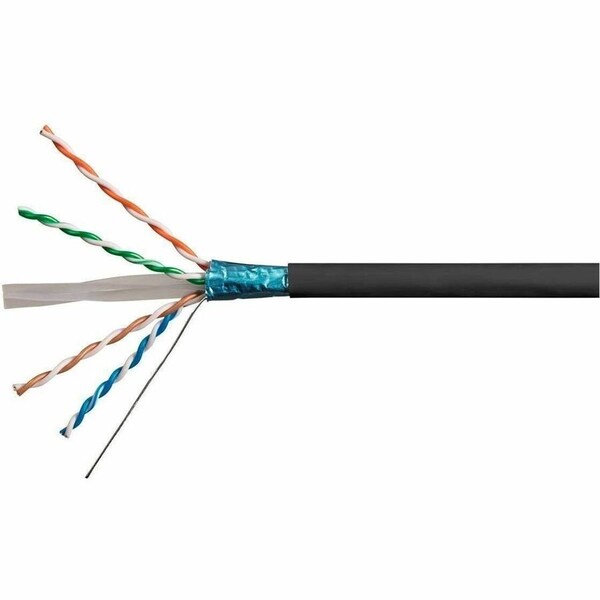

Data Cable, 1000 ft. L, Black Jacket

product price: $413.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Wire Size 23 AWG
  • Fire Rating - Data Cable Riser
  • Shielded Shielded
  • Number of Conductors 8
  • Total Number of Conductors - Data Cable 8 (4 Pair)
See all product information

Product Information

Dimensions

Wire Size 23 AWG
Length 1000 ft.
Conductor Size - Data Cable 23 AWG
Spool Length 1,000 ft
Outside Dia. 0.291 in
Bend Radius 1 3/16 in
Cable Length 1,000 ft
Outside Diameter 5/16 in

Details

Item - Data Cable Category Cable
Item Data Cable
Fire Rating - Data Cable Riser
Shielded Shielded
Number of Conductors 8
Total Number of Conductors - Data Cable 8 (4 Pair)
Solid / Stranded Solid
Jacket Color Black
Jacket Material PVC
Installation Temp. Range 0 Degrees to 60 Degrees C
Category - Data Cable 6A
Shielded / Unshielded Shielded
Frequency 500 MHz
Number of Conductor Pairs 4
Package Type - Data Cable Spool
Standards ANSI/TIA/EIA 568, ETL, RoHS Compliant Directive (2011/65/EU), UL Listed
Operating Temp. Range -20 Degrees to 75 Degrees C
Green Environmental Attribute RoHS 2011/65/EU Compliant
Package Type Reel in a Box
NEC Article and Type 800 CMR
Category Type 6A
Jacket Material - Wire and Cable PVC
Pulling Force 25 lb
Jacket Material (Wire and Cable) PVC
Plenum Rated Yes
Maximum Operating Temperature 167 Degrees F
Performance Category 6A
Fire Rating Riser
Conductor Gauge 23 AWG
Maximum Frequency 550 MHz
Solid/Stranded Solid
Number of Pairs 4
Minimum Operating Temperature -4 Degrees F

Description

Data Cable, Cable Length 1,000 ft, Conductor Gauge 23 AWG, Fire Rating Riser, Jacket Color Black, Jacket Material PVC, Outside Diameter 5/16 in, Performance Category 6A, Shielded Shielded, Number of Conductors 8, Number of Pairs 4, NEC Article and Type 800 CMR, Standards ANSI/TIA/EIA 568, ETL, RoHS Compliant Directive (2011/65/EU), UL Listed, Package Type Reel in a Box, Solid/Stranded Solid, Bend Radius 1 3/16 in, Maximum Frequency 550 MHz, Maximum Operating Temperature 167 Degrees F
