  9. Data Cable, 1000 ft. L, Black Jacket
Shop All Data & Ethernet Cables
Zoro Select

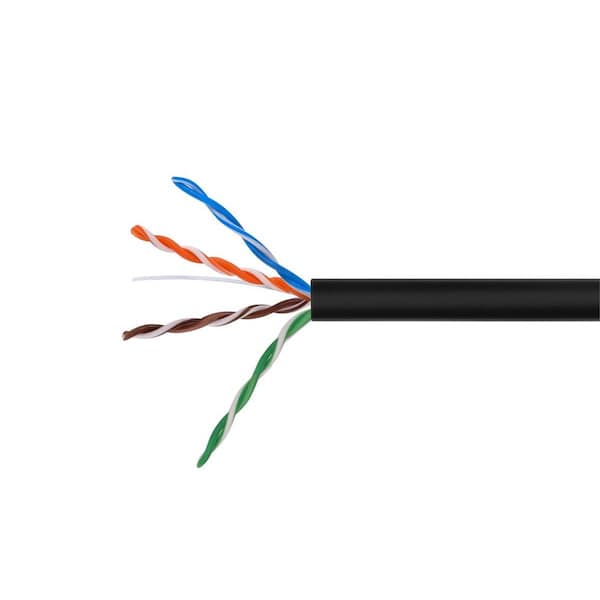

Data Cable, 1000 ft. L, Black Jacket

product price: $146.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Fire Rating - Data Cable Riser
  • Category - Data Cable 5e
  • Wire Size 24 AWG
  • Shielded Unshielded
  • Number of Conductors 8
See all product information

Product Information

Dimensions

Wire Size 24 AWG
Length 1000 ft.
Conductor Size - Data Cable 24 AWG
Spool Length 1,000 ft
Outside Dia. 0.2 in
Bend Radius 1 13/16 in
Cable Length 1000 ft
Outside Diameter 1/4 in

Details

Item Data Cable
Item - Data Cable Category Cable
Fire Rating - Data Cable Riser
Category - Data Cable 5e
Shielded Unshielded
Number of Conductors 8
Total Number of Conductors - Data Cable 8 (4 Pair)
Solid / Stranded Solid
Package Type - Data Cable Box
Jacket Color Black
Jacket Material PVC
Operating Temp. Range -20 Degrees to 70 Degrees C
NEC Article and Type 800 CMR
Standards TIA 568, ULA
Frequency 100 MHz
Number of Conductor Pairs 4
Plenum Rated No
Package Type Box
Pulling Force 25 lb
Green Environmental Attribute RoHS 2011/65/EU Compliant
Installation Temp. Range 0 Degrees to 60 Degrees C
Shielded / Unshielded Unshielded
Jacket Material (Wire and Cable) PVC
Jacket Material - Wire and Cable PVC
Category Type 5e
Cable Type Category 5e
Color Black
Product Type Network Cable
Conductor Gauge 24 AWG
Fire Rating Riser
Minimum Operating Temperature -4 Degrees F
Performance Category 5e
Solid/Stranded Solid
Number of Pairs 0
Maximum Operating Temperature 158 Degrees F
Maximum Frequency 350 MHz

Description

Data Cable, Cable Length 1,000 ft, Conductor Gauge 24 AWG, Fire Rating Riser, Jacket Color Black, Jacket Material PVC, Outside Diameter 1/4 in, Performance Category 5e, Shielded Unshielded, Number of Conductors 8, Number of Pairs 0, NEC Article and Type 800 CMR, Standards TIA 568, ULA, Solid/Stranded Solid, Bend Radius 1 13/16 in, Maximum Frequency 350 MHz, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature -4 Degrees F, Pulling Force 25 lb
