Drill Bit Set, 1/16"-1/2" By 1/64" Size
Mfr # 401J97
Zoro # G3374240
product price:
$
147.99
/ea
Free Shipping & Returns
Key Features
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Application
For Alloy and Carbon Steels, Aluminum, Brass, Bronze, Cast Iron, Nickel based Alloys, Plastic and Wood
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 401J97
- Zoro #
- G3374240
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Drill Bit Size
- 1/16 in to 1/2 in by 64ths
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
- Shank Dia.
- 15/64 in
- Drill Bit Dimension Type
- Fractional Inch
- Depth x Dia. Ratio
- 3xD
- Drill Length Class
- Screw-Machine Length
- Largest Drill Bit Size
- 1/2 in
- Smallest Drill Bit Size
- 1/16 in
- Depth:Dia. Ratio
- 3xD
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/32 in, 13/64 in, 15/32 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 3/16 in, 3/32 in, 3/8 in, 31/64 in, 5/16 in, 5/32 in, 5/64 in, 7/16 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in
Description

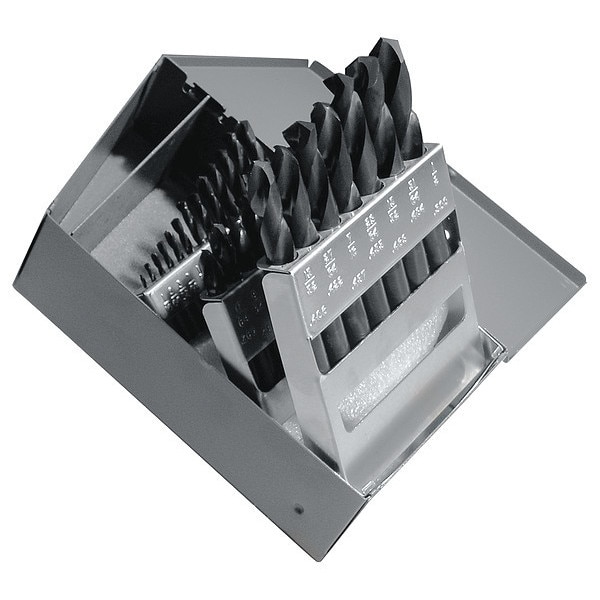

The ZORO SELECT - 401J97 is a screw machine drill bit set consisting of 29 high-speed steel bits with sizes ranging from 1/16 inch to 1/2 inch in fractional increments. The bits feature a split point design with a 135-degree point angle and two flutes, suitable for drilling the following materials: alloy and carbon steels, aluminum, brass, bronze, cast iron, nickel-based alloys, plastic, and wood. These straight-shank drill bits are sized for fractional inch measurements (1/16 in to 1/2 in in 64ths increments) and are supplied in a metal drill index case for organized storage. The set complies with ASME standards.
Key Features:
- Drill bit sizes from 1/16" to 1/2" by 64ths, covering 29 increments
- Made from high-speed steel
- Split point tip with a 135° angle
- Two-flute spiral design with helix angles between 21° and 34°
- Straight shank with 15/64" diameter
- Screw-machine length drill bits with black oxide finish
- Suitable for drilling materials including metals, plastics, and wood (alloy and carbon steels, aluminum, brass, bronze, cast iron, nickel-based alloys, plastic, and wood)
- Supplied in a metal drill index case for storage
