  11. Dual Wheel Caster, Swivel, Nylon, 3 in., 1320 lb

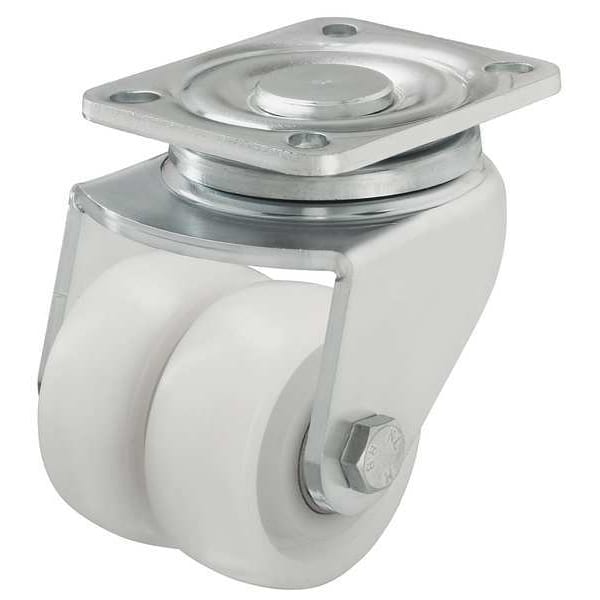

Zoro Select Dual Wheel Caster, Swivel, Nylon, 3 in., 1320 lb LHD-SPO 75K - main

Dual Wheel Caster, Swivel, Nylon, 3 in., 1320 lb

  • Mfr # LHD-SPO 75K

  • Zoro # G6904222

product price: $114.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LHD-SPO 75K
Zoro #
G6904222
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 in
Wheel Width
1 1/4 in
Mounting Height
4 5/16 in
Mounting Plate Size
3-11/32in x 3-15/16in
Mounting Plate Thickness
5/16in
Mounting Bolt Dia.
5/16 in
Overall Height
4-3/8in
Stem Dia.
No Stem
Swivel Radius
82.5 mm
Bolt Hole Spacing - Length
3.156 in
Mounting Plate Length
3 3/8 in
Bolt Hole Spacing - Width
2.375 in
For Axle Dia.
10 mm
Overall Wheel Width
1 1/4 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Load Rating
1320 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
White
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
2
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
A
Caster Stem Type
No Stem/Plate Included
Frame Finish
Zinc Plated
Caster Brake Included
No
Wheel Color
White
Caster Temp. Range Available
No
Tread Color
White
Standards
RoHS, ICWM
Tread
Standard
Replacement Wheel
Mfr. No. SPO 75/15K
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Wheel Core Material
Nylon
Load Rating Range
Heavy-Duty
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Extended Lead
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
600 kg
Series
LHD Series
ESD Conductive
No
Load Capacity - Maximum
1,190 lb
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Mounting Hole Type
Hole
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 1320 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
