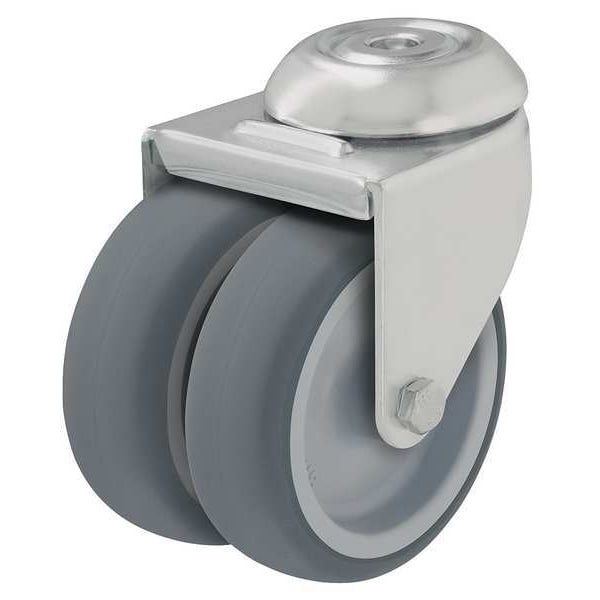

Zoro Select Dul Whl Cstr, Swl, Thm Rbr, 2 in, 176 lb, Gry LMDA-TPA 50KF - main

Dul Whl Cstr, Swl, Thm Rbr, 2 in, 176 lb, Gry

  • Mfr # LMDA-TPA 50KF

  • Zoro # G9716077

product price: $14.75
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
175 lb
Wheel Dia.
50 mm
Wheel Width
2 x 19 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LMDA-TPA 50KF
Zoro #
G9716077
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
50 mm
Wheel Width
2 x 19 mm
Mounting Height
2 3/4 in
Mounting Bolt Dia.
M10
Bolt Hole Dia.
3/8 in
Overall Height
71 mm
Stem Dia.
3/8"
Tire Thickness
1/8 in
Swivel Radius
56 mm

Details

Item
Swivel Plate Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
175 lb
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Non-Marking
Yes
Number of Wheels
2
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Polypropylene
Core Color
Gray
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards
RoHS, ICWM
Caster Temp. Range Available
No
Caster Stem Type
Hollow Kingpin
Caster Core Material
Nylon
Caster Raceway
Double Ball
Caster Load Rating Range
Light Duty
System of Measurement
Metric
Wheel Color
Gray
Caster Wheel Bearings
Precision Ball
Caster Wheel/Tread Material
Thermoplastic Rubber
Frame Material
Zinc
Caster Brake Included
No
Tread
Standard
Caster Mounting Type
Hollow Kingpin
Replacement Wheel
Mfr. No. TPA 50/6K-FK
Tread Color
Gray
Caster Temp. Range
-20 Degrees To 60 Degrees C
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
85 Shore A
Wheel/Tread Color
Gray
Extended Lead
No
Caster Swivel Lock Type
No Lock Included
Series
LMDA Series
ESD Conductive
No
Caster Break Type
No Brake Included
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Capacity
80 kg
Includes Thread Guards
Yes
Tread Shape
Standard
Load Capacity - Maximum
175 lb
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
-5 Degrees F
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Wheel Hardness Rating
85 Shore A

Description

Bolt-Hole Caster, 3/8 in Bolt Hole Dia., 3/8 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 0 to 299 lb Load Rating Range, 175 lb Load Rating, 2 Number of Wheels, Ball, 2 7/10 in Mounting Height, 2 in Wheel Dia., 3/4 in Wheel Width, Rubber Wheel/Tread Material, 85 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
