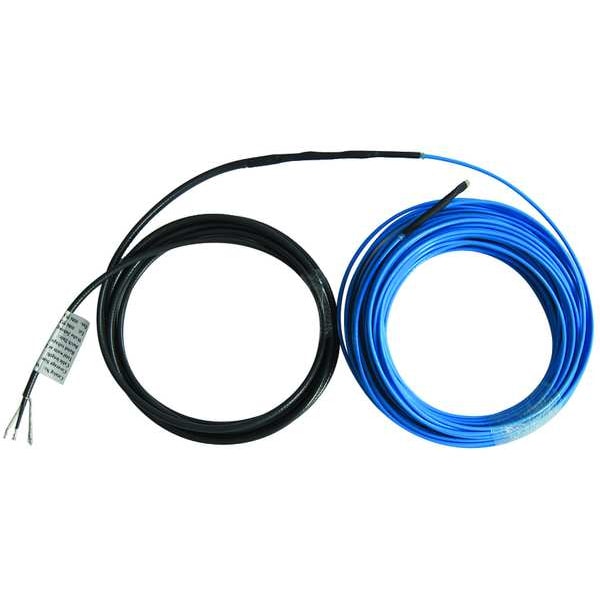

Electric Heating Cable, 120VAC, 320 ft Length

  • Mfr # 6MJX9

  • Zoro # G5615504

product price:  $293.99
/ea
Free Shipping & Returns

Key Features

Mounting Location
Dry
Cable Length
320 ft
Max. Circuit Length
300 ft
Heater Voltage
120VAC
Number of Conductors
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6MJX9
Zoro #
G5615504
UPC #
190735543399
Country of Origin
China

Dimensions

Cable Length
320 ft
Max. Circuit Length
300 ft
Overall Width
1/8 in
Overall Length
320 ft

Details

Item
Electric Heating Cable
Mounting Location
Dry
Heater Voltage
120VAC
Number of Conductors
2
Amps per Cable @ 40F
8 A
For Use With
Thermostat
Includes
Cable Only
Watts On Plastic
960
Watts per Cable @ 40F
960 W
Watts per Foot @ 40F
3 W
Watts On Metal
960
Amps per Foot @ 40F
0.025 A
Plug Type
NEMA 5-15
Features
22-28 AWG/Solid Conductor, FEP Insulation, AL Foil, PVDF Sleeve
Standards
cULus
Voltage
120V AC
Phase
1
Wattage Output
960 W
Min. Operating Temp.
40 Degrees F
Color
Red
Cable Cover Material
PVC
Cable Material
Copper
Cable Type
Nonregulating
Frequency
60 Hz
NEMA Plug Configuration
Hardwired
Max. Operating Temp.
221 Degrees F
For Use Outdoors
Indoor Only
For Use Indoors/Outdoors
Indoor
Operating Temperature - Maximum
221 Degrees F
Operating Temperature - Minimum
40 Degrees F
Heating Cable Conductor Type
Copper
Heating Cable Shielding Material
PVC
Power Connection Type
Hardwired

Description

Electric Heating Cable, Overall Length 320 ft, Overall Width 1/8 in, Voltage 120V AC, Wattage Output 960 W, Heating Cable Conductor Type Copper, Heating Cable Shielding Material PVC, For Use Indoors/Outdoors Indoor, For Use With Thermostat, 1 Phase, Frequency 60 Hz, Includes Cable Only, Standards cULus
