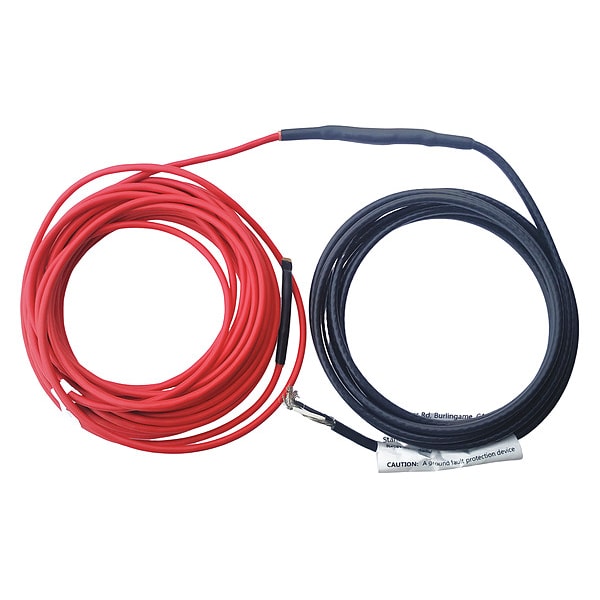

Electric Heating Cable, 120VAC, 400 ft Length

  • Mfr # 6MJY1

  • Zoro # G6183195


product price: $340.99
/ea
Free Shipping & Returns

Key Features

Mounting Location
Dry
Cable Length
400 ft
Max. Circuit Length
300 ft
Heater Voltage
120VAC
Watts On Metal
1200
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6MJY1
Zoro #
G6183195
UPC #
190735543412
Country of Origin
China

Dimensions

Cable Length
400 ft
Max. Circuit Length
300 ft
Overall Width
1/8 in

Details

Item
Electric Heating Cable
Mounting Location
Dry
Heater Voltage
120VAC
Watts On Metal
1200
For Use With
Thermostat
Amps per Cable @ 40F
10 A
Plug Type
NEMA 5-15
Watts per Foot @ 40F
3 W
Watts per Cable @ 40F
1,200 W
Watts On Plastic
1200
Features
22-28 AWG/Solid Conductor, FEP Insulation, AL Foil, PVDF Sleeve
Includes
Cable Only
Amps per Foot @ 40F
0.025 A
Standards
cULus
Number of Conductors
2
Voltage
120V AC
Phase
1
Min. Operating Temp.
40 Degrees F
Max. Operating Temp.
221 Degrees F
For Use Outdoors
Indoor Only
NEMA Plug Configuration
Hardwired
Frequency
60 Hz
Wattage Output
1200 W
Cable Cover Material
PVC
Color
Black/Red
Cable Material
Copper
Cable Type
Nonregulating
For Use Indoors/Outdoors
Indoor Only

Description

Electric Heating Cable, Cable Type Nonregulating, Cable Length 400 ft, Indoor Only, NEMA Plug Configuration Hardwired, 3 W Watts per Foot @ 40F, Voltage 120V AC, Includes Cable Only, 1,200 W Watts per Cable @ 40F, 10 A Amps per Cable @ 40F, 0.025 A Amps per Foot @ 40F, Cable Cover Material PVC, Cable Material Copper, Frequency 60 Hz, Max. Circuit Length 300 ft, Max. Operating Temp. 221 Degrees F, Min. Operating Temp. 40 Degrees F, Number of Conductors 2, Overall Width 1/8 in, 1 Phase
