  5. Heavy Wall Self Locking Thread Insert, 1/4"-20 Int Thrd Sz, Steel, 10 PK

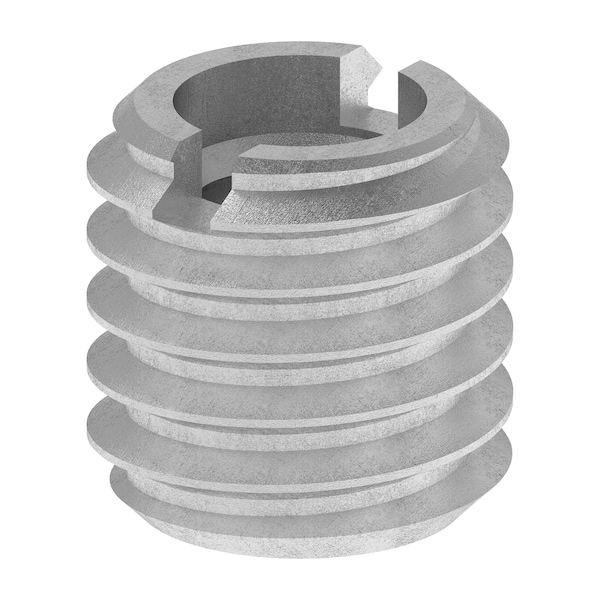

Zoro Select Heavy Wall Self Locking Thread Insert, 1/4"-20 Int Thrd Sz, Steel, 10 PK 329-4IC-PK10 - main

Heavy Wall Self Locking Thread Insert, 1/4"-20 Int Thrd Sz, Steel, 10 PK

  • Mfr # 329-4IC-PK10

  • Zoro # G109228197

CAD Available
product price:  $12.25
/pk 10, $1.23/ea

Key Features

CAD Drawing
Internal Thread Size
1/4"-20
Material
Steel
Overall Length
7/16 in
Insert Diameter
7/16 in
External Thread Size
7/16"-14
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
329-4IC-PK10
Zoro #
G109228197
UPC #
847554005941
Country of Origin
United States

Dimensions

Internal Thread Size
1/4"-20
Overall Length
7/16 in
Insert Diameter
7/16 in
External Thread Size
7/16"-14
Drill Bit Size
U
Minimum Installation Depth
1/2 in
Compatible Tap Size
7/16"-14
Maximum Hole Diameter
0.368 in

Details

CAD Available
Yes
Item
Self Locking Thread Insert
Material
Steel
Wall Type
Heavy Wall
Thread Type
UNC
Installation Method
Drive Tool, Screwdriver
Tensile Strength (PSI)
78,300 psi
Finish
Black Phosphate
Brinell Hardness
163
Features
Pre-Applied Adhesive
Material Grade/Class
12L14
System of Measurement
Inch
Compatible Material
Metal
Compatible with Manufacturer Model Number
500-3
Internal Thread Fit
2B
Thread Direction
Right Hand
External Thread Fit
2A
Compatible Manufacturer Part Number
500-3
Compatible Manufacturer Model Number
500-3
For Use With Mfr. Model Number
500-3
Compatible with Manufacturer Model No.
500-3
Compatible with Mfr. Model No.
500-3
For Use with Mfr Model Number
500-3
Compatible Pump Manufacturer Part Number
500-3
Compatible Mfr. Model Number
500-3
Tensile Strength
78,300 psi
Series
329

Description

Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 7/16 In.-14, Drill Bit Size U, External Thread Fit 2A, External Thread Size 7/16 In.-14, Finish Black Phosphate, Insert Diameter 7/16 in, Internal Thread Fit 2B, Internal Thread Size 1/4 In.-20, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.368 in, Minimum Installation Depth 1/2 in, Overall Length 7/16 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse
