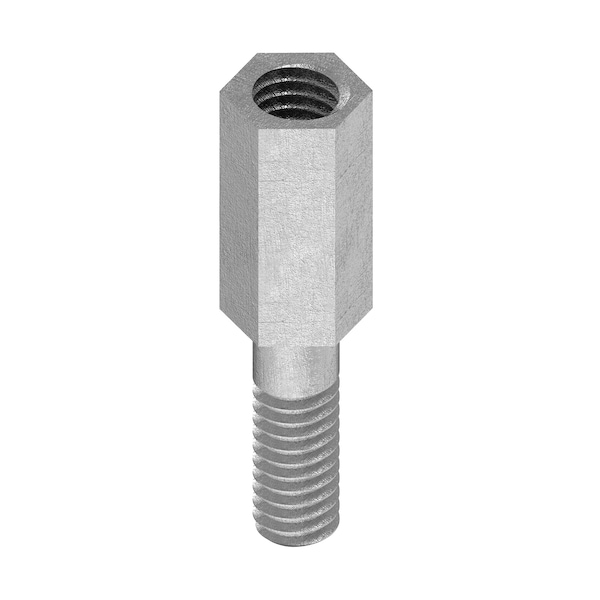

Hex Standoff, No. 8-32 Thrd Sz, 1/2 in L, 3/8 in Thrd L 18-8 Stainless Steel, Plain, 1/4" Hex, 10 PK
Mfr # HMF204-832-SS
Zoro # G1312263
CAD Available
product price:Â $6.69
/pk 10, $0.67/eaKey Features
CAD Drawing
Standoff Gender
Male-Female
Thread Size
#8-32
Overall Length
1 in
Standoff Material
18-8 Stainless Steel
Standoff Finish
Plain
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HMF204-832-SS
Zoro #
G1312263
UPC #
-
Country of Origin
Multiple
Dimensions
Thread Size
#8-32
Overall Length
1 in
Body Length
1/2 in
Thread Length
3/8 in
Outside Diameter
1/4 in
Hex Width
1/4"
Length
1/2"
Thread Depth
21/64 in
Overall Length Tolerance
+/-0.005 in
Screw Size
#8-32
Hex Width Tolerance
+/-0.015 in
Length Tolerance
+/-0.005"
Body Thread Length
21/64 in
Description
Standoff, Thread Size #8-32, Standoff Thread Gender Male-Female, Cap Head Height Not Applicable, Cap Head Diameter Not Applicable, Overall Length 1 in, Body Length 1/2 in, Thread Length 3/8 in, Body Thread Length 21/64 in, Hex Width 1/4 in, Square Size Not Applicable, Outside Diameter Not Applicable, Shape Hex, Material Stainless Steel, Material Grade/Class 18-8, Finish Plain, Pack Size Small Pack, System of Measurement Inch, Internal Thread Style Partially Threaded
