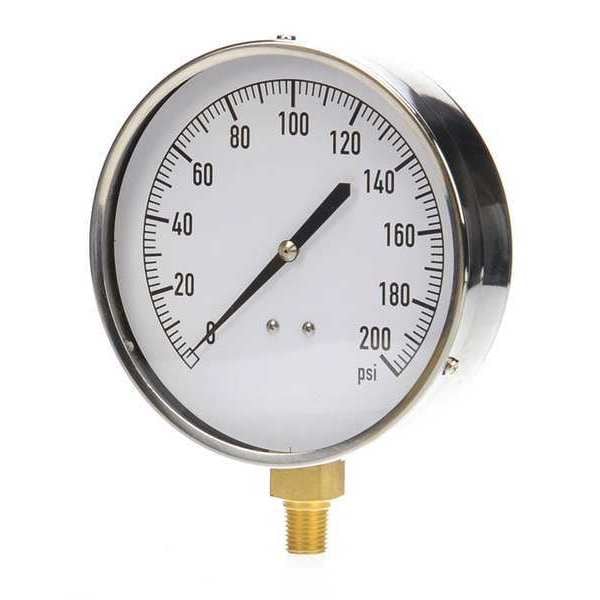

Zoro Select Industrial Pressure Gauge, 0 to 200 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location 18C751 - main
Shop ZORO SELECT

Industrial Pressure Gauge, 0 to 200 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 18C751

  • Zoro # G4740145

product price:  $35.39
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
18C751
Zoro #
G4740145
UPC #
190735393352
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Nominal Dial Size
4 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Mechanical Contractors
Gauge Case Material
Stainless Steel
Series
Y120SS
Lens Material
Acrylic
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Gauge Application
Mechanical Contractors/HVAC
For Use With
Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy
Smallest Graduation
2 psi
Gauge Primary Range Smallest Graduation
2
Case Color
Silver
Socket Material
Copper Alloy HPb59-1
Case Material
Stainless Steel
Wetted Materials
Copper
Connection Type
MNPT
Bezel Material
Stainless Steel
Includes Calibration Certificate
No
Non-Sparking
No
Includes Vent Plug
No
Cleaned for Oxygen Service
No
Process Connection Gender
Male
Pressure Range Type
Pressure
Scale Type
Single
Removable Bezel
No
Primary Scale Minor Graduations
2
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Vibration Resistance
None
Includes Mounting Hardware
No
Field Fillable
No
Dial Color
White
Freeze Resistant Movement
No
Dry Dampening Feature
None
Accuracy Scale
Full Scale
Pressure Gauge Type
HVAC Dial Pressure Gauge
Sensor Material
Copper Alloy
Compatible Process Media
Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy
Gauge Case Liquid
None
Maximum Pressure
200
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Industrial Pressure Gauge, Accuracy +/-1.0 Percent, Gauge Case Material Stainless Steel, Nominal Dial Size 4 1/2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Compatible Process Media Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy, Sensor Material Copper Alloy, Socket Material Copper Alloy HPb59-1, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/4 in
