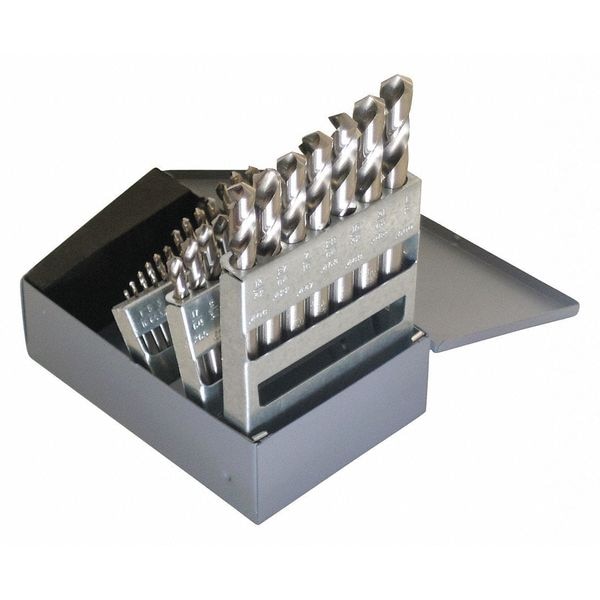

29PC 118 Degree General-Purpose Screw Machine Lgth Dril Set Cleveland 2120 Bright HSS RHS/RHC 1/16-1/2

  • Mfr # C00980

  • Zoro # G2993407

product price:  $170.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
0
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
C00980
Zoro #
G2993407
UPC #
697334009801
Country of Origin
United States

Dimensions

Sizes Included
1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
Drilling Length
0.625", 0.688", 0.750", 0.813", 0.875", 0.938", 1.000", 1.063", 1.125", 1.188", 1.250", 1.313", 1.375", 1.438", 1.500", 1.563", 1.625", 1.688", 1.688", 1.750", 1.813", 1.875", 1.938", 2.000", 2.063", 2.125", 2.125", 2.188", 2.250"
Drill Bit Dimension Type
Fractional Inch
Drill Bit Size
1/16 in to 1/2 in by 64ths
Shank Size
1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
Overall Length
1.625", 1.688", 1.750", 1.813", 1.875", 1.938", 2.063", 2.125", 2.188", 2.250", 2.375", 2.438", 2.500", 2.625", 2.688", 2.750", 2.813", 2.938", 3.000", 3.063", 3.125", 3.250", 3.313", 3.375", 3.438", 3.563", 3.625", 3.688", 3.750"
Shank Dia.
1/16 in -1/2 in
Depth x Dia. Ratio
4xD
Depth:Dia. Ratio
4xD
Drill Length Class
Screw-Machine Length
Largest Drill Bit Size
1/2 in
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/32 in, 13/64 in, 15/32 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 3/16 in, 3/32 in, 3/8 in, 31/64 in, 5/16 in, 5/32 in, 5/64 in, 7/16 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in
Smallest Drill Bit Size
1/16 in
Diameter
1/16 in, 5/64 in, 3/32 in, 7/64 in, 1/8 in, 9/64 in, 5/32 in, 11/64 in, 3/16 in, 13/64 in, 7/32 in, 15/64 in, 1/4 in, 17/64 in, 9/32 in, 19/64 in, 5/16 in, 21/64 in, 11/32 in, 23/64 in, 3/8 in, 25/64 in, 13/32 in, 27/64 in, 7/16 in, 29/64 in, 15/32 in, 31/64 in, 1/2 in

Details

Item
Screw Machine Drill Bit Set
Number of Pieces
0
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Shank Type
Straight
Coolant Through
No
List Number
2120
Flute Type
Spiral
Point Type
Radial
Application
For Drilling Alloy Steel, Aluminum, Brass, Carbon Steel, Cast Iron, Copper Alloys
Shank Shape
Straight
Standards
ASME B94.11M-1993
Drill Bit Grouping
Drill Bit Set
Number of Flutes
2
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Primary Material Application
All Materials
Drill Bit Point Type
Conventional Point
Material Grade - Machining
General Purpose
Finish - Machining
Bright (Uncoated)
Number of Drill Bits
29
Measurement System
Fractional Inch
Material - Machining
High Speed Steel
Drill Bit Case Type
Metal Index
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
21 Degrees

Description

The CLEVELAND - C00980 is a screw machine drill bit set intended for drilling the following materials: alloy steel, aluminum, brass, carbon steel, cast iron, and copper alloys (based on product specifications). The set includes 29 HSS drill bits in fractional inch sizes ranging from 1/16 inch to 1/2 inch, intended for general purpose drilling applications. These drill bits have a 118-degree conventional point angle with a radial point type and a screw-machine length to help accommodate different drilling depths, featuring a spiral 2-flute design for right-hand cutting direction. The bits are provided in a metal index case.

Key Features:

  • Drill bit sizes range from 1/16 inch to 1/2 inch by 64ths.
  • Material: High Speed Steel (HSS) with bright, uncoated finish.
  • Drill length: 0.625 inch to approximately 3.75 inches (depending on bit size).
  • Shank type and shape: straight, with shank diameters matching drill sizes from 1/16 inch to 1/2 inch.
  • Flute type: spiral helix with angles between 21 and 34 degrees.
  • Point type: 118-degree conventional radial point for general purpose drilling.
  • Meets ASME B94.11M-1993 standard specifications (as stated by the manufacturer).
