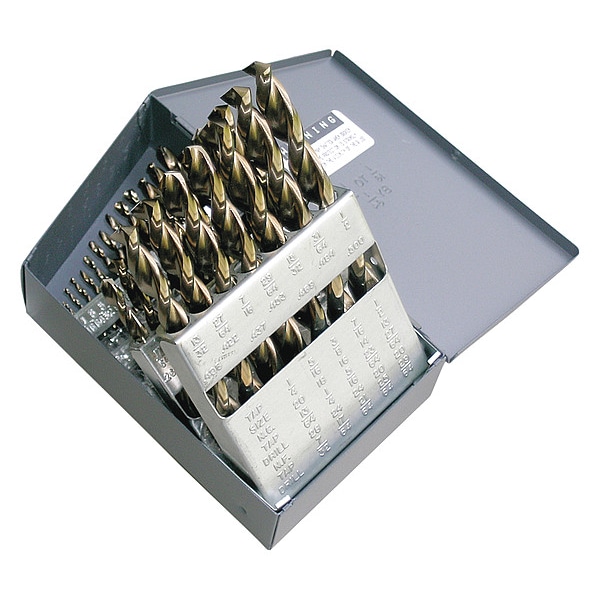

Jobber Drill Set, Parabolic, 29 PC, HSS

  • Mfr # 5UDN9

  • Zoro # G1675633

product price:  $140.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5UDN9
Zoro #
G1675633
UPC #
-
Country of Origin
United States

Dimensions

Drill Bit Size
1/16 in to 1/2 in by 64ths
Drill Bit Dimension Type
Fractional Inch
Shank Dia.
1/6 in
Sizes Included
1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
Depth x Dia. Ratio
4xD
Smallest Drill Bit Size
1/16 in
Drill Length Class
Jobber-Length
Largest Drill Bit Size
1/2 in
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
Depth:Dia. Ratio
4xD
Overall Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
29
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Point Type
Split Point
Drill Bit Grouping
Drill Bit Set
Standards
Not Rated
Material - Machining
High Speed Steel
Shank Type - Machining
Straight
Drill Bit Point Type
Split Point
Material Grade - Machining
Heavy Duty
Measurement System
Fractional Inch
Aircraft Drill
No
Coolant Fed
Non-Coolant Through
Number of Drill Bits
29
Finish - Machining
Black and Gold
Primary Material Application
Aluminum, Cast Iron, Steel
Flute Type
Spiral
Drill Bit Case Type
Metal Index
Number of Flutes
2
Spiral Direction
Right Hand
Primary Material Application ISO Code
K, N, P
Helix Angle - Minimum
21 Degrees
Helix Angle - Maximum
34 Degrees

Description

The ZORO SELECT - 5UDN9 is a jobber-length drill bit set comprising 29 high speed steel drill bits intended for fractional inch size drilling. It features split point drill tips with a 135-degree point angle and right-hand spiral flutes, intended for use on workpieces classified as ISO K, ISO N, and ISO P (including aluminum, cast iron, and steel). The set covers a size range from 1/16 inch to 1/2 inch, with available lengths providing cutting engagement up to a 4x diameter ratio. The bits have straight shanks with a 1/6 inch diameter.

Key Features:

  • Number of drill bits: 29 pieces ranging from 1/16" to 1/2" by 64ths
  • Material: high speed steel
  • Point type: split point with 135° point angle
  • Lengths vary from 1 7/8" up to 6" overall
  • Flutes: 2 spiral flutes with a helix angle between 21° and 34°
  • Measurement system: Fractional inch sizes
  • Spiral direction: Right hand
  • Shank type: Straight with a diameter of 1/6 inch
