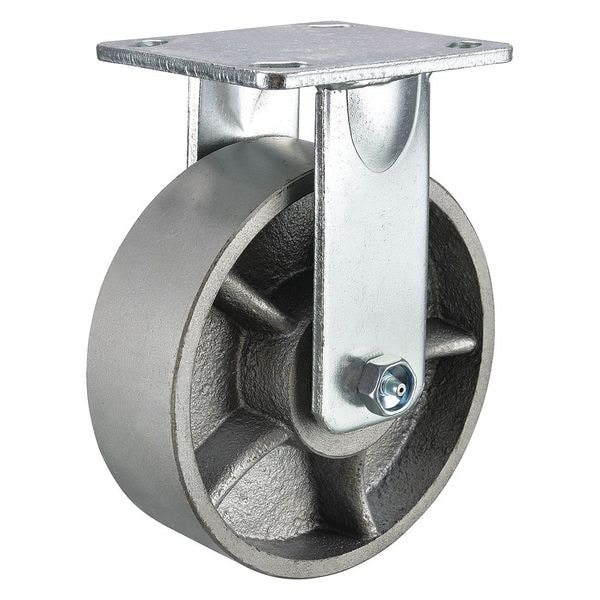

Zoro Select Kngpnlss Rgd Cstr, Ductl Iron, 8in, 4100 lb P27R-D080R-16 - main

Kngpnlss Rgd Cstr, Ductl Iron, 8in, 4100 lb

  • Mfr # P27R-D080R-16

  • Zoro # G1521326

product price:  $98.35
/ea

Key Features

Caster Brake Included
No
Caster Sub-Type
Rigid
Overall Height
10-1/8in
Includes
Complete Caster
Frame Finish
Zinc Plated
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P27R-D080R-16
Zoro #
G1521326
UPC #
-
Country of Origin
China

Dimensions

Overall Height
10-1/8in
Mounting Bolt Dia.
1/2 in
Wheel Width
3 in
Wheel Dia.
8 in
Mounting Height
10 1/8 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Outside Slot Spacing - Length
5.25 in
Bolt Hole Spacing - Length
2.438 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Width
2.438 in
Overall Wheel Width
3 in
Mounting Plate Length
6 1/4 in
For Axle Dia.
3/4 in
Mounting Plate Thickness
0.315 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Width
3.375 in

Details

Caster Brake Included
No
Caster Sub-Type
Rigid
Includes
Complete Caster
Frame Finish
Zinc Plated
Non-Marking
No
Load Rating
4100 lb
Extended Lead
No
Item
Kingpinless Rigid Caster
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
A
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Core Color
Black
Number of Wheels
1
Caster Frame Material
Steel
Standards
ANSI ICWM
Replacement Wheel
Mfr. No. P-D-080x030/075R
Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Thread Guards
No
Wheel Color
Black
Caster Brake Type
No Brake
Load Rating Range
Heavy Duty
Wheel Bearing Type
Roller
Swivel Construction
Kingpinless
Wheel Core Material
Ductile Iron
Tread Shape
Standard
Wheel/Tread Hardness Rating
Extra Hard
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Ductile Iron
Wheel/Tread Color
Black
System of Measurement
Inch
Load Capacity
6000 lb
Series
P27 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Caster Mounting Type
Plate
ESD Conductive
No
Tread Color
Black
Load Capacity - Maximum
4,100 lb
Wheel Bearing Material
Steel
Wheel Hardness Rating
145 BHN
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Core Type
Solid
Operating Temperature - Maximum
800 Degrees F
Operating Temperature Range
Up To 800 Degrees F

Description

Rigid, Plate Caster, Load Rating 4100 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
