  11. Leveling Caster, 1100 lb. Load, Swivel

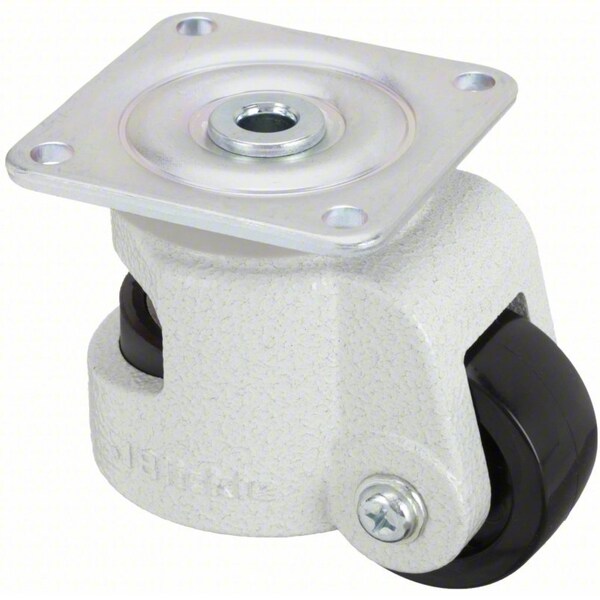

Zoro Select Leveling Caster, 1100 lb. Load, Swivel HRP-POA 63G - main

Leveling Caster, 1100 lb. Load, Swivel

  • Mfr # HRP-POA 63G

  • Zoro # G7608066

product price: $83.45
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
Leveling Pad
Wheel Dia.
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HRP-POA 63G
Zoro #
G7608066
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
2 1/2 in
Wheel Width
1 3/16 in
Mounting Height
4 1/8 in
Mounting Plate Size
3 35/64 in x 3 35/64 in
Mounting Plate Thickness
1/8 in
Mounting Bolt Dia.
5/16 in
Overall Height
4-3/32in
Caster Thread Size
M8
Maximum Leveling Height
4 9/16 in
Mounting Plate Length
3 9/16 in
For Axle Dia.
8 mm
Bolt Hole Spacing - Width
2.75 in
Overall Wheel Width
1 3/16 in
Bolt Hole Spacing - Length
2.75 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
Leveling Pad
Load Rating
1100 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Aluminum
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/4 in x 2-3/4 in
Inside Bolt Hole Spacing
2-3/4 in x 2-3/4 in
Caster Plate Hole Pattern
D
Includes Thread Guards
No
Features
Anti-Vibration, One Moving and One Set
Standards
DIN EN 12530
Caster Brake Included
No
Load Rating Range
1000 to 2999 lb
Operating Position
Rear
Adjustment Style
Thumbwheel
Operating Temperature Range
-20 Degrees to 180 Degrees F
Caster Temp. Range Available
Yes
Wheel Color
Black
Wheel Core Material
Nylon
Foot/Pad Material
Rubber
Swivel Construction
Kingpin
Caster Stem Type
No Stem/Plate Included
Frame Finish
Powder Coated
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Single Ball
Load Capacity - Maximum
1,100 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Mounting Hole Type
Hole
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Square

Description

Swivel, Plate Caster, Load Rating 1100 lb, Wheel Dia. 2 1/2 in, Wheel Width 1 3/16 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Leveling Pad, Tread Shape Standard
