  11. Leveling Caster, Nylon, 2 in., 440 lb.

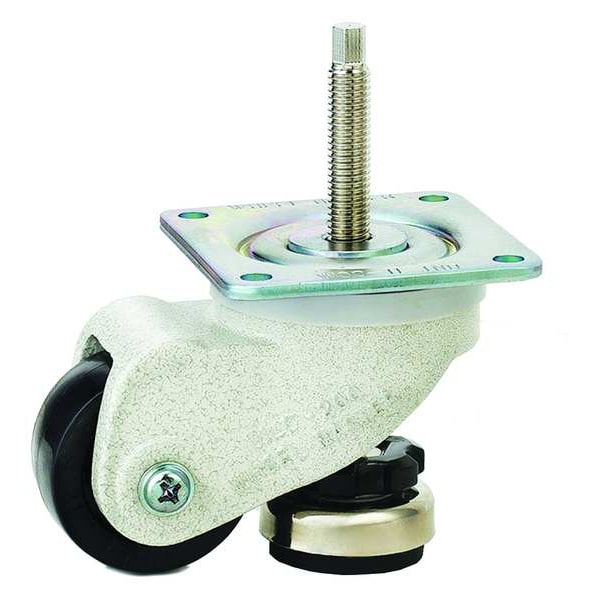

Zoro Select Leveling Caster, Nylon, 2 in., 440 lb. WMLC-200FS - main

Leveling Caster, Nylon, 2 in., 440 lb.

  • Mfr # WMLC-200FS

  • Zoro # G8959395

product price: $46.99
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Nylon
Caster Brake Type
Leveling Pad
Wheel Dia.
2 in
Wheel Width
1 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WMLC-200FS
Zoro #
G8959395
UPC #
-
Country of Origin
Mexico

Dimensions

Wheel Dia.
2 in
Wheel Width
1 in
Mounting Height
2 7/8 in
Mounting Plate Size
2-7/8 in x 2-7/8 in
Mounting Plate Thickness
4 mm
Mounting Bolt Dia.
6 mm
Stem Dia.
3/8"
Overall Height
2.886in
Stem Length
2"
Maximum Leveling Height
4 13/16 in
Mounting Plate Width
73 mm
Bolt Hole Spacing - Length
6 mm
Mounting Plate Length
73 mm
Overall Wheel Width
2 in
Bolt Hole Spacing - Width
7 mm

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Nylon
Caster Brake Type
Leveling Pad
Load Rating
220 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel Hardness Rating
90 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Aluminum
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-9/32 in x 2-9/32 in
Inside Bolt Hole Spacing
2-9/32 in x 2-9/32 in
Caster Plate Hole Pattern
D
Wheel Color
Black
Caster Stem Type
Threaded
Replacement Wheel
Mfr. No. WMW200
Features
New Concepts Leveling Casters
Foot/Pad Material
Steel
Operating Position
Side
Includes
Mounting Hardware
Standards
ANSI ICWM
Caster Temp. Range Available
Yes
Caster Brake Included
No
Frame Finish
Powder Coated
Swivel Construction
Kingpinless
Operating Temperature Range
14 Degrees to 194 Degrees F
Load Rating Range
0 to 299 lb
Wheel Core Material
Nylon
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Adjustment Style
Nut
Wheel/Tread Hardness Rating
Hard
Load Capacity - Maximum
220 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
For Surface Type
Asphalt, Ceramic, Rubber, Tile, Vinyl, Wood
Wheel Core Type
Solid
Caster Features
Quiet-Roll

Description

Swivel, Plate Caster, Load Rating 220 lb, Wheel Dia. 2 in, Wheel Width 1 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Leveling Pad, Tread Shape Standard
