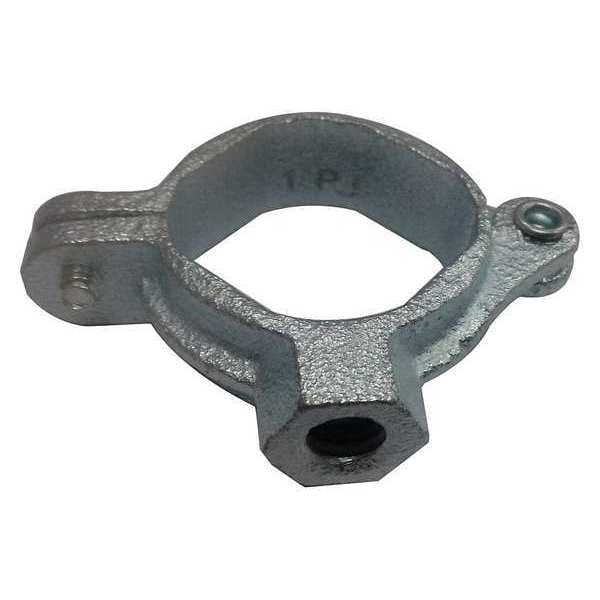

Malleable Iron Split Ring Hanger, 1"

product price: $2.35
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type MSS SP-58(Type 12)
  • Metal Detectable Yes
  • Width (In.) 1 9/10 in
  • Pipe Size (In.) 1 in
  • Material Electro-Galvanized Iron
See all product information

Product Information

Dimensions

Width (In.) 1 9/10 in
Pipe Size (In.) 1 in
Width 1.9"
Length (In.) 2 3/5 in
Thread Size (In.) 3/8-16
Rod Size 3/8 in
For Pipe Size 1 in
Mounting Hole Diameter 1 in
Overall Height 2.6 in
For Rigid Conduit Size 1 in
For Tube Outside Diameter 1 in
For Threaded Rod Size 3/8 in
For Maximum Outside Diameter 1 5/16 in
Overall Width 1.9 in
Thread Size 3/8"-16
For Strut Channel Width 1 in

Details

Type MSS SP-58(Type 12)
Metal Detectable Yes
Material Electro-Galvanized Iron
Description/Special Features For Suspension of Stationary Non Insulated Pipe Lines
Standards MSS SP-58, SP-69
Max. Load (Lb.) 180 lb
Item Split-Ring Hanger
Support Material Cast Iron
For Environment Indoor Pipe System
Resistance Properties Corrosion Resistant
Load Capacity 180 lb
Hanger Type Swivel Loop
Maximum Operating Temperature 200 Degrees F
Minimum Operating Temperature 0 Degrees F
For Location Indoor
Hanger Material Finish Electro-Galvanized
Closure Bolts
Cushioned No
Support Material Finish Zinc-Plated
For Insulated Pipe No
Hanger Material Iron
Includes Mounting Hardware Yes
Vertical Adjustment 1 in
For Use On Stationary Non-Insulated Pipe
Pipe Center to Hanger Top 1 1/8 in
Mount Type Bolts/Screws
Bolt Material Steel
Required Number of Threaded Rods 1
Pipe Center to Rod 1 1/8 in

Description

Split-Ring Hanger, Bolt Material Steel, Cushion Material Not Applicable, Cushioned No, For Maximum Outside Diameter 1 5/16 in, For Pipe Size 1 in, For Threaded Rod Size 3/8 in, Hanger Material Iron, Hanger Material Finish Electro-Galvanized, Hanger Material Grade Not Applicable, Hanger Type Swivel Loop, Included Insulation Thickness Not Applicable, Load Capacity 180 lb, Overall Height 2.6 in, Overall Width 1.9 in, Roller Length Not Applicable, Support Material Cast Iron
