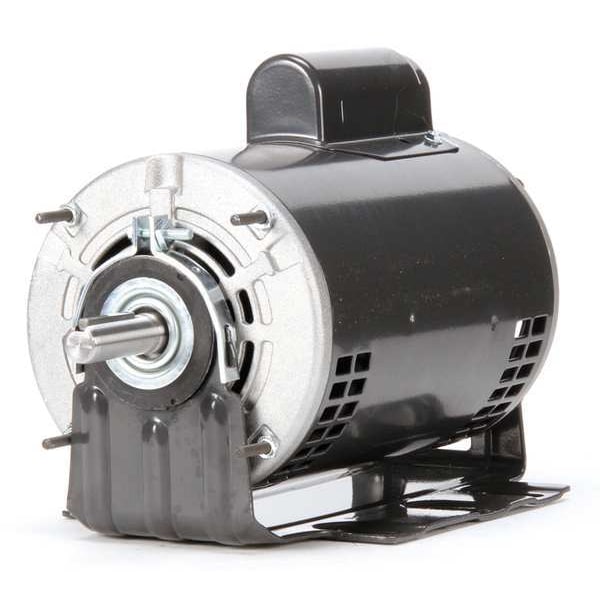

Mtr, Cap St, 3/4hp, 1725, 115/208-230, 56, ODP

  • Mfr # 4YU35

  • Zoro # G1113585

product price:
$
412.99
/ea
Free Shipping & Returns

Key Features

Resilient Ring Dia.
2 1/4 in
Motor Design
Capacitor-Start
Length Less Shaft
9 13/16 in
Ins. Class
B
Ring to Ring Center
9 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4YU35
Zoro #
G1113585
UPC #
190735339213
Country of Origin
Mexico

Dimensions

Resilient Ring Dia.
2 1/4 in
Length Less Shaft
9 13/16 in
Body Dia.
5 5/8 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Overall Length
10 23/32 in
Shaft Diameter
5/8 in
Resilient Ring Diameter
2 1/4 in
Body Diameter
5.6 in
Frame Size
56
Wire Rope Length
10 23/32 in
Length
10 23/32 in

Details

Motor Design
Capacitor-Start
Ins. Class
B
Ring to Ring Center
9 1/2 in
Voltage
115/208-230V AC
Motor Sub Application
Direct Drive
Motor Application
HVAC/R
Standards
CSA Certified, UL Recognized
Motor Service Factor
1.25
Item
Fan and Blower Motor
Motor Thermal Protection
Auto
No. of Speeds
1
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Frame
56
Motor Enclosure Design
Open Dripproof
Capacitor Required
Capacitor Included
Motor Mounting Type
Cradle Base
RPM Range
1,701-1,800
HP
3/4
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Phase
Single
Motor Mounting Position
All Angle
Duty
Continuous
Motor Shaft Design
Keyed
Nameplate RPM
1,725
Motor Bearings
Ball
Mounting Stud Pattern
3 5/8 in
Full Load Amps
10.6 A
Stud Quantity
4
Number of Shafts
1
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Includes
Capacitor
Conduit Box Position
F3
Mounting
Cradle Base/Stud
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Product Type
Fan and Blower Motor
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.25
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
All Angle
Shaft Design
Keyed
Sub Application
General Purpose
Bearing Type
Ball
Full Load Current @ 60 Hz
10.6 A
Application
Fan/Blower
Drive Type
Belt Drive
Insulation Class
B

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 10.6 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
