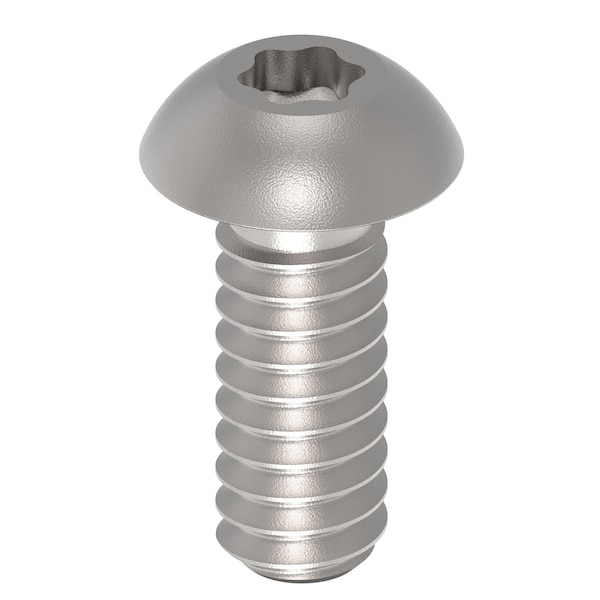

No. 10-24 x 1/2 in Torx Button Standard Machine Screw, Unfinished A286 Stainless Steel
Mfr # ZBM228-286
Zoro # G110395888
CAD Available
product price:Â $17.69
/eaKey Features
Button Head
Torx Drive
CAD Drawing
System of Measurement
Inch
Drive Size
T25
Material
Stainless Steel
Finish
Plain
Tensile Strength
160,000 psi
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
ZBM228-286
Zoro #
G110395888
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
#10-24
Fastener Length
1/2 in
Drive Size
T25
Minimum Thread Length
1/2 in
Head Height
0.101 in
Maximum Head Width
23/64 in
Screw Size
#10
Maximum Head Height
3/32 in
Overall Length
19/32 in
Head Width
0.361 in
Description
Machine Screw, Head Type Button, Material Stainless Steel, Finish Plain, Drive Six-Lobe, Thread Size #10-24, Fastener Length 1/2 in, Head Width 0.361 in, Head Height 0.101 in, Drive Size T25, Tensile Strength 160,000 psi, Dimensional Standards RoHS Compliant, Pack Size Small, Minimum Thread Length 1/2 in, Type Machine Screw, Washer Outside Diameter Not Applicable, Washer Thickness Not Applicable, Maximum Head Width 23/64 in, Minimum Head Width Not Applicable, Maximum Head Height 3/32 in
