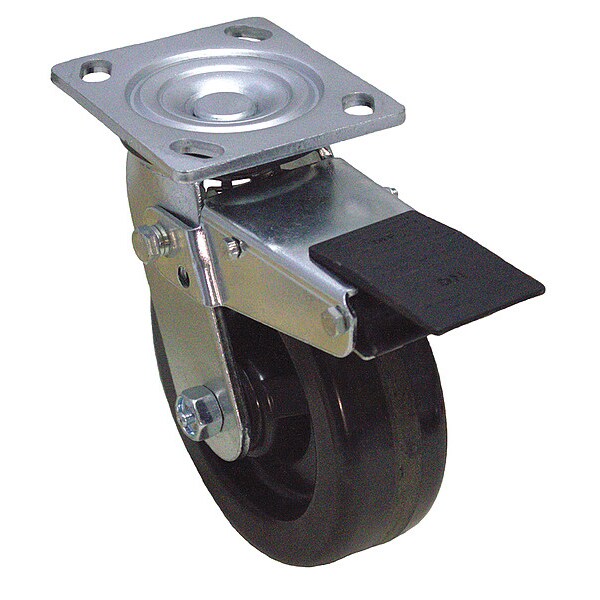

NSF-Listed Plate Caster, 1250 lb. Ld Rating, Roller

  • Mfr # P21S-PH080R-14-TB
  • Zoro # G7278402
product price:
$
60.69
/ea

Key Features

Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Swivel Radius
7 1/2 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PH080R-14-TB
Zoro #
G7278402
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
7 1/2 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
8 in
Overall Height
9-1/2"
Mounting Height
9 1/2 in
Mounting Plate Size
4in x 4-1/2in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in
Mounting Plate Length
4 1/2 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.625 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Thickness
7/32 in
Outside Slot Spacing - Width
3 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Length
3.625 in
Fits Chest Size
Floor Protective

Details

Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Replacement Wheel
Mfr. No. P-PH-080X020/050R
Caster Sub-Type
Swivel
Thread Guards
No
Features
Floor Protective
Inside Bolt Hole Spacing
3 in x 3 in
Load Rating
1250 lb
Caster Brake Included
Yes
Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Brake Type
Total Lock
Caster Plate Hole Pattern
B
Wheel Color
Black
Core Color
Black
Standards
ANSI ICWM, NSF Listed
Item
Plate Caster
Caster Frame Material
Steel
Number of Wheels
1
Non-Marking
Yes
Extended Lead
No
Caster Temp. Range Available
Yes
Includes
Total-Lock
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Tread Shape
Standard
Swivel Construction
Kingpin
Load Rating Range
Medium-Duty
Wheel Core Material
Phenolic
Swivel Lock Type
Total Lock
Includes Thread Guards
No
Wheel Bearing Type
Roller
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
System of Measurement
Inch
Tread Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Load Capacity
1250 lb
Series
P21 Series
ESD Conductive
No
Caster Mounting Type
Plate
Compatible With
P-PH-080X020/050R
Load Capacity - Maximum
1,250 lb
Brake Location
Rear
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Hardness Rating
102 HRE
Wheel Bearing Material
Steel
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-40 Degrees To 250 Degrees F

Description

Swivel, Plate Caster, Load Rating 1250 lb, Swivel Lock Type Total Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
