Shop ZORO SELECT

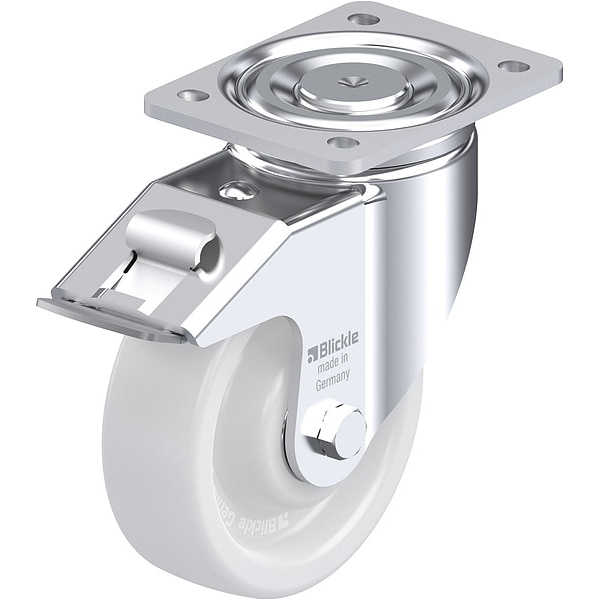

Plate Caster, Swivel, 7 3/4"H

  • Mfr # LH-SPO 150K-FI

  • Zoro # G514810895

product price:
$
333.99
/ea
Free Shipping & Returns

Key Features

Features
Particularly Resistant to Shocks and Impact Due to Four Specially-Shaped, Hardened Bearing Seats
Series
SPO
Caster Sub-Type
Swivel
Core Color
White
System of Measurement
Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-SPO 150K-FI
Zoro #
G514810895
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
203 mm
Wheel Width
51 mm
Mounting Height
197 mm
Mounting Bolt Dia.
10 mm
Mounting Plate Width
110 mm
Inside Slot Spacing - Width
75.409 mm
For Axle Dia.
12 mm
Inside Slot Spacing - Length
104.775 mm
Outside Slot Spacing - Width
80.167 mm
Mounting Plate Thickness
6 mm
Hub Length
56 mm
Outside Slot Spacing - Length
104.775 mm
Mounting Plate Length
110 mm
Overall Wheel Width
51 mm

Details

Features
Particularly Resistant to Shocks and Impact Due to Four Specially-Shaped, Hardened Bearing Seats
Series
SPO
Caster Sub-Type
Swivel
Core Color
White
System of Measurement
Metric
Number of Mounting Holes
4
Caster Brake Type
Total Lock
Number of Wheels
1
Caster Mounting Type
Plate
Caster Frame Material
Steel
Frame Finish
Zinc Plated
Item
Plate Caster
Swivel Construction
Kingpin
Wheel/Tread Color
White
Non-Marking
Yes
Wheel Core Type
Solid
Includes Thread Guards
No
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-20 Degrees C
Swivel Raceway Type
Double Ball
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Load Capacity - Maximum
1,765 lb
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
Wheel Bearing Type
Ball
Tread Shape
Standard
Frame Construction
Pressed
Wheel Hardness Rating
70 Shore D
Brake Location
Rear
Operating Temperature - Maximum
80 Degrees C
Product Type
Plate Caster

Description

Swivel, Plate Caster, Wheel Dia. 203 mm, Wheel Width 51 mm, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
