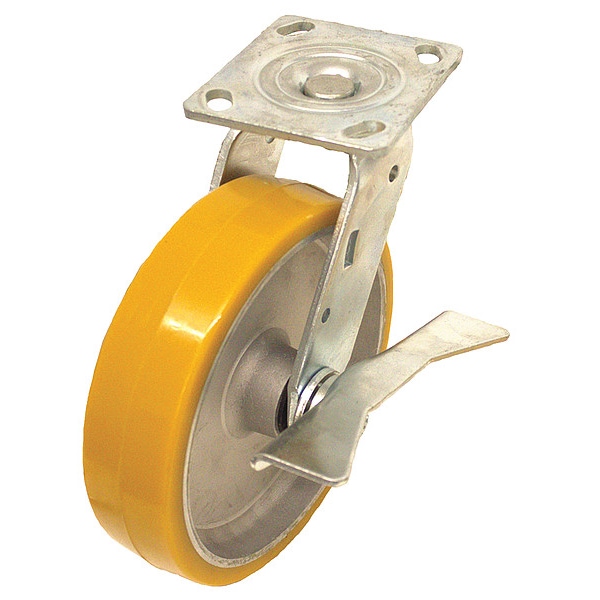

Zoro Select NSF-Listed Plate Caster, 1250 lb. Ld Rating, Roller P21S-UA080R-14-CB - main

NSF-Listed Plate Caster, 1250 lb. Ld Rating, Roller

  • Mfr # P21S-UA080R-14-CB

  • Zoro # G7277958

product price:  $76.39
/ea
Free Shipping & Returns

Key Features

Extended Lead
No
Wheel Width
2 in
Thread Guards
No
Caster Brake Type
Side Brake
Non-Marking
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-UA080R-14-CB
Zoro #
G7277958
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Overall Height
9-1/2in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
8 in
Swivel Radius
6 3/4 in
Mounting Height
9 1/2 in
Mounting Plate Size
4in x 4-1/2in
For Axle Dia.
1/2 in
Mounting Plate Length
4 in
Mounting Plate Thickness
1/4in
Inside Slot Spacing - Length
3 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in

Details

Extended Lead
No
Thread Guards
No
Caster Brake Type
Side Brake
Non-Marking
Yes
Caster Frame Material
Steel
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Frame Finish
Zinc Plated
Number of Wheels
1
Features
Floor Protective
Standards
ANSI ICWM, NSF Listed
Caster Temp. Range Available
Yes
Load Rating
1250 lb
Replacement Wheel
Mfr. No. P-UA-080x020/050R
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Plate Hole Pattern
B
Caster Sub-Type
Swivel
Item
Swivel Caster with Brake
Core Color
Silver
Inside Bolt Hole Spacing
3 in x 3 in
Wheel Color
Yellow
Caster Brake Included
Yes
Includes
Pinch Type Brake
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Aluminum
Tread Shape
Standard
Load Rating Range
Medium-Duty
Swivel Construction
Kingpin
Wheel Bearing Type
Roller
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Caster Mounting Type
Plate
Tread
Standard
Tread Color
Yellow
Accessories
Optional: P-DL21-14 (Directional Lock)
Series
P21 Series
Load Capacity
1250 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Compatible With
P-UA-080X020/050R
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
1,250 lb
Brake Location
Side
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Slot
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
