  11. Swivel NSF-Listed Plate Cstr w/Brke, NSF-Listed Plate Type A
Zoro Select Swivel NSF-Listed Plate Cstr w/Brke, NSF-Listed Plate Type A 33H663 - main

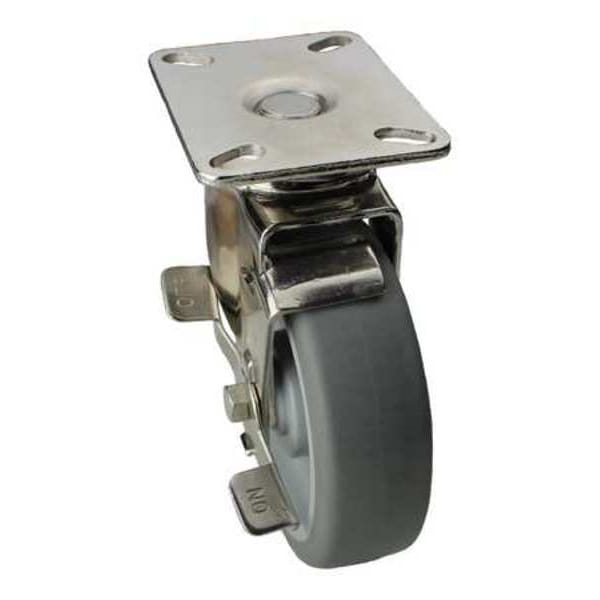

Swivel NSF-Listed Plate Cstr w/Brke, NSF-Listed Plate Type A

  • Mfr # 33H663

  • Zoro # G4803075

product price: $20.79
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
Side Brake
Wheel Dia.
5 in
Wheel Width
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33H663
Zoro #
G4803075
UPC #
190735900642
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1 1/2 in
Mounting Height
6 3/16 in
Mounting Plate Size
3 1/8 in x 4 1/8 in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
5/16 in
Overall Height
6-3/16in
Stem Dia.
No Stem

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
Side Brake
Load Rating
300 lb
Wheel Bearing Type
Delrin
Wheel/Tread Color
Gray
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Plate Hole Pattern
A
Frame Finish
Nickel Plated
Thread Guards
No
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Wheel Color
Gray
Caster Stem Type
No Stem/Plate Included
Extended Lead
No
Caster Temp. Range Available
Yes
Replacement Wheel
IR050520601G
Standards
ANF, ANSI, ANSI ICWM, NSF
Includes
Top and Bottom Grease Seals; Dust Cover
Caster Brake Included
Yes
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Includes Thread Guards
Yes
Load Rating Range
300 to 999 lb
Swivel Raceway Type
Double Ball
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Soft
Load Capacity - Maximum
300 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Maximum
175 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
