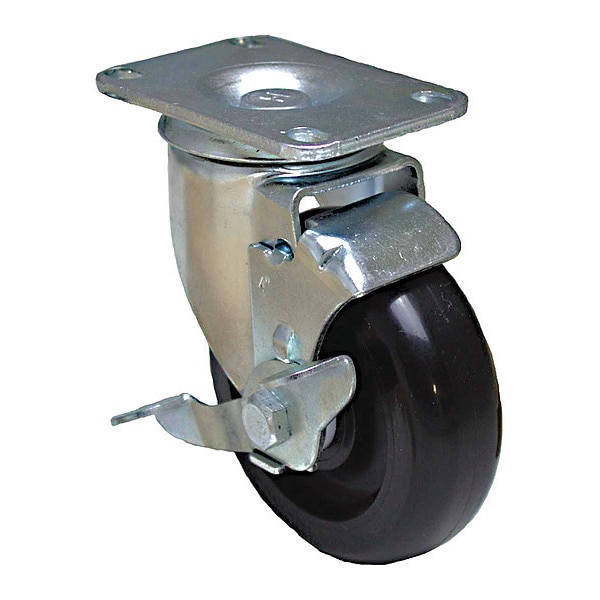

Zoro Select NSF-Listed Plate Caster, 275 lb. Ld Rating, Bk Wheel P12S-PB040D-P2-WB - main

NSF-Listed Plate Caster, 275 lb. Ld Rating, Bk Wheel

  • Mfr # P12S-PB040D-P2-WB

  • Zoro # G6667451

product price:  $11.35
/ea

Key Features

Inside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Extended Lead
No
Wheel Dia.
4 in
Swivel Radius
4 3/8 in
Wheel Width
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12S-PB040D-P2-WB
Zoro #
G6667451
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Swivel Radius
4 3/8 in
Wheel Width
1 1/4 in
Overall Height
5-1/8in
Mounting Bolt Dia.
5/16 in
Mounting Plate Size
3-1/8 in x 4-1/8 in
Mounting Height
5 1/8 in
Outside Slot Spacing - Width
2.375 in
Outside Slot Spacing - Length
3.5 in
Inside Slot Spacing - Length
3.375 in
Inside Slot Spacing - Width
2.375 in
For Axle Dia.
3/8 in
Mounting Plate Thickness
0.118 in
Mounting Plate Length
3 1/8 in
Overall Wheel Width
1 1/4 in

Details

Inside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Extended Lead
No
Caster Brake Type
Side Brake
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Wheel Color
Black
Non-Marking
Yes
Thread Guards
No
Frame Finish
Zinc Plated
Standards
ANSI ICWM, NSF Listed
Caster Temp. Range Available
Yes
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
2-3/8 in x 3-1/2 in
Core Color
Black
Caster Brake Included
Yes
Load Rating
275 lb
Includes
Complete Caster with Brake
Item
Swivel Caster with Brake
Number of Wheels
1
Caster Plate Hole Pattern
C
Features
Push/Pull Force Reduction
Replacement Wheel
Mfr. No. P-PB-040x013/038D
Caster Frame Material
Steel
Tread Shape
Standard
Wheel Bearing Type
Delrin
Load Rating Range
Light-Duty
Wheel Core Material
Polypropylene
Swivel Construction
Kingpin
Operating Temperature Range
-15 Degrees to 160 Degrees F
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polypropylene
Wheel/Tread Color
Black
System of Measurement
Inch
Caster Mounting Type
Plate
Tread Color
Black
Tread
Standard
Load Capacity
275 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
P12 Series
Load Capacity - Maximum
275 lb
Wheel Hardness Rating
65 Shore D
Mounting Hole Type
Slot
Wheel Core Type
Solid
Wheel Bearing Material
Delrin
Brake Location
Side
Caster Features
Corrosion-Resistant, Maintenance Free
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood

Description

Swivel, Plate Caster, Load Rating 275 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
