Zoro Select Plate Caster, Swivel, Rubber, 2 13/16"H LDA-VPA 50G-FI - main

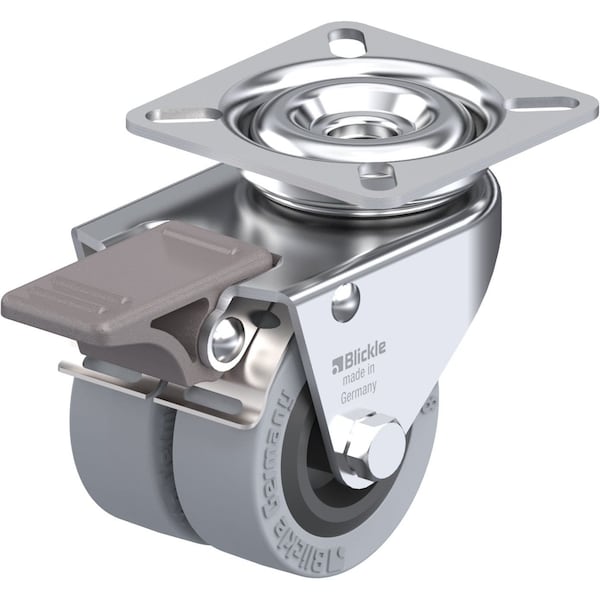

Plate Caster, Swivel, Rubber, 2 13/16"H

  • Mfr # LDA-VPA 50G-FI

  • Zoro # G3577084

product price:  $22.85
/ea

Key Features

Mounting Height
2 13/16 in
Mounting Plate Size
2-3/8in x 2-3/8in
Mounting Bolt Dia.
7/32 in
Replacement Wheel
Mfr. No. VPA 50/8G
Swivel Construction
Kingpin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LDA-VPA 50G-FI
Zoro #
G3577084
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Height
2 13/16 in
Mounting Plate Size
2-3/8in x 2-3/8in
Mounting Bolt Dia.
7/32 in
Swivel Radius
2 1/4 in
Wheel Width
11/16 in
Wheel Dia.
2 in
Overall Height
2-51/64in
Inside Slot Spacing - Length
38 mm
Bolt Hole Spacing - Length
1.5 in
Overall Wheel Width
11/16 in
Mounting Plate Width
60 mm
Outside Slot Spacing - Length
48 mm
Mounting Plate Thickness
5/64in
Outside Slot Spacing - Width
48 mm
Mounting Plate Length
60 mm
For Axle Dia.
6 mm
Inside Slot Spacing - Width
38 mm

Details

Replacement Wheel
Mfr. No. VPA 50/8G
Swivel Construction
Kingpin
Wheel Color
Gray
Swivel Raceway Type
Double Ball
Core Color
Black
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel Core Material
Polypropylene
Load Rating
175 lb
Caster Temp. Range Available
Yes
System of Measurement
Metric
Thread Guards
No
Caster Frame Material
Steel
Wheel Bearing Type
Plain
Features
Floor Protective, Reduced Swivel Forces
Caster Brake Included
Yes
Wheel/Tread Material
Thermoplastic Rubber
Tread Color
Gray
Tread Shape
Standard
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
38 mm x 38 mm
Load Rating Range
Light-Duty
Extended Lead
No
Wheel/Tread Hardness Rating
Soft
Tread
Standard
Caster Mounting Type
Plate
Non-Marking
Yes
Caster Brake Type
Total Lock
Item
Swivel Caster with Total Lock
Includes
Total Lock Brake
Outside Bolt Hole Spacing
48 mm x 48 mm
Swivel Lock Type
No Lock Included
Application
Cases, Food Service Racks, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Standards
DIN EN 12530
Frame Finish
Zinc Plated
Caster Plate Hole Pattern
A
Number of Wheels
2
Wheel/Tread Color
Gray
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Series
LDA Series
Load Capacity
70 kg
ESD Conductive
No
Compatible With
VPA 50/8G
Load Capacity - Maximum
175 lb
Wheel Hardness Rating
80 Shore A
Brake Location
Rear
Wheel Core Type
Solid
Mounting Hole Type
Hole
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-10 Degrees F
Operating Temperature Range
-20 Degrees To 60 Degrees C
Operating Temperature - Maximum
140 Degrees F

Description

Swivel, Plate Caster, Load Rating 175 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 11/16 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type Total Lock, Tread Shape Standard
