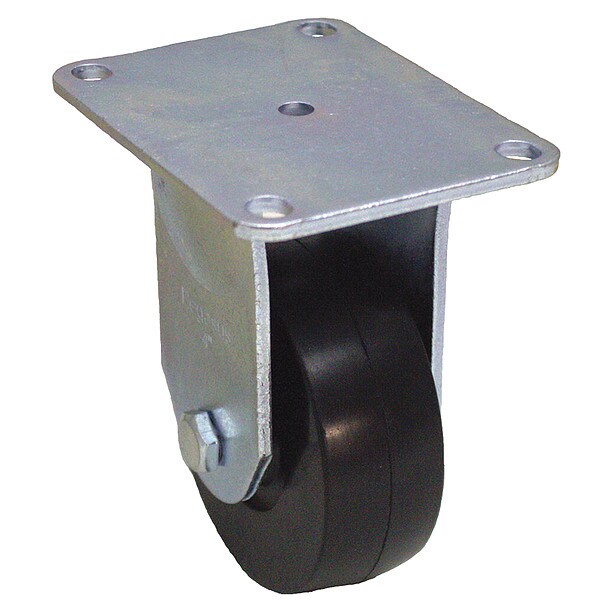

Zoro Select NSF-Listed Plate Caster, 325 lb. Load Rating, Rigid P12R-HR060D-P2 - main

NSF-Listed Plate Caster, 325 lb. Load Rating, Rigid

  • Mfr # P12R-HR060D-P2

  • Zoro # G3317038

product price:  $19.79
/ea

Key Features

Features
Noise Reduction
Mounting Bolt Dia.
5/16 in
Standards
ANSI ICWM, NSF Listed
Core Color
Black
Caster Plate Hole Pattern
C
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12R-HR060D-P2
Zoro #
G3317038
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
5/16 in
Wheel Dia.
6 in
Swivel Radius
None- Rigid Caster
Wheel Width
1 1/4 in
Overall Height
7-1/4in
Mounting Plate Size
3-1/8in x 4-1/8in
Mounting Height
7 1/4 in
For Axle Dia.
3/8 in
Inside Slot Spacing - Length
3.375 in
Outside Slot Spacing - Length
3.5 in
Inside Slot Spacing - Width
2.375 in
Outside Slot Spacing - Width
2.375 in
Mounting Plate Thickness
1/8in
Mounting Plate Length
3 1/8 in
Overall Wheel Width
1 1/4 in

Details

Features
Noise Reduction
Standards
ANSI ICWM, NSF Listed
Core Color
Black
Caster Plate Hole Pattern
C
Thread Guards
No
Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Extended Lead
No
Item
Rigid Caster
Non-Marking
No
Caster Brake Included
No
Caster Frame Material
Steel
Outside Bolt Hole Spacing
2-3/8 in x 3-1/2 in
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Load Rating
325 lb
Wheel Color
Black
Inside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Number of Wheels
1
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. P-HR-060x013/038D
Caster Brake Type
No Brake
Load Rating Range
Light-Duty
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Operating Temperature Range
-20 Degrees To 125 Degrees F
Tread Shape
Standard
Wheel Bearing Type
Delrin
Number of Mounting Holes
4
Wheel Core Material
Rubber
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
System of Measurement
Inch
Load Capacity
325 lb
Caster Mounting Type
Plate
ESD Conductive
No
Tread Color
Black
Series
P12 Series
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Tread
Standard
Load Capacity - Maximum
350 lb
Wheel Hardness Rating
80 Shore D
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Delrin
Caster Features
Corrosion-Resistant
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Rigid, Plate Caster, Load Rating 325 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
