  11. NSF-Listed Plate Caster, 350 lb. Load Rating, Swivel

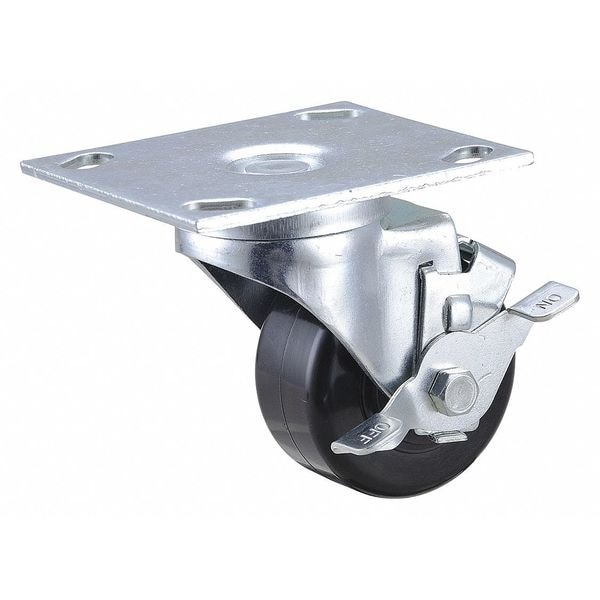

Zoro Select NSF-Listed Plate Caster, 350 lb. Load Rating, Swivel 400K75 - main

NSF-Listed Plate Caster, 350 lb. Load Rating, Swivel

  • Mfr # 400K75

  • Zoro # G6593909

product price: $20.19
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Phenolic
Caster Brake Type
Side Brake
Wheel Dia.
3 in
Wheel Width
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
400K75
Zoro #
G6593909
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1 1/2 in
Mounting Height
4 1/4 in
Mounting Plate Size
3 3/4 in x 4 1/2 in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
3/8 in
Overall Height
4-3/8in
Swivel Radius
3 7/8 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Phenolic
Caster Brake Type
Side Brake
Load Rating
350 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Application
General Purpose
Replacement Wheel
33H684
Standards
NSF Listed
Caster Temp. Range Available
Yes
Wheel Color
Black
Frame Finish
Zinc Plated
Caster Brake Included
Yes
Thread Guards
No
Extended Lead
No
Swivel Construction
Kingpin
Load Rating Range
300 to 999 lb
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Phenolic
Includes Thread Guards
No
Load Capacity - Maximum
350 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 250 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Swivel, Plate Caster, Load Rating 350 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
