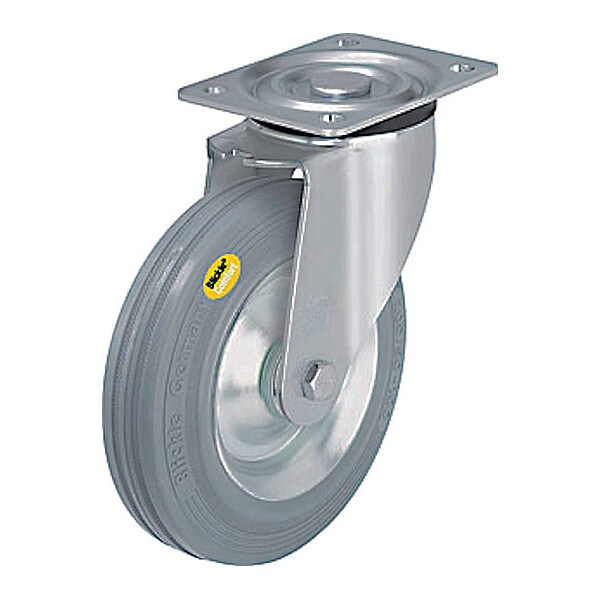

Plate Caster, 770 lb. Load Rating, Swivel

  • Mfr # L-RD 200K-VLI
  • Zoro # G7278238
product price:
$
143.99
/ea
Free Shipping & Returns

Key Features

Thread Guards
No
Standards
DIN EN 12532, ANSI ICWM
Extended Lead
No
Load Rating
770 lb
Overall Height
9-1/4"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-RD 200K-VLI
Zoro #
G7278238
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
9-1/4"
Mounting Bolt Dia.
3/8 in
Swivel Radius
6 1/2 in
Wheel Width
2 in
Wheel Dia.
8 in
Mounting Plate Size
4-21/64in x 5-33/64in
Mounting Height
9 1/4 in
Mounting Plate Thickness
3/16 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
4.125 in
Mounting Plate Length
4 5/16 in
For Axle Dia.
12 mm
Outside Slot Spacing - Width
3.156 in
Inside Slot Spacing - Width
2.969 in
Inside Slot Spacing - Length
4.125 in
Fits Chest Size
Two Component Solid Rubber Tire

Details

Thread Guards
No
Standards
DIN EN 12532, ANSI ICWM
Extended Lead
No
Load Rating
770 lb
Core Color
Silver
Includes
Top Grease Seal
Caster Plate Hole Pattern
D
Number of Wheels
1
Wheel Color
Gray
Item
Plate Caster
Features
Two Component Solid Rubber Tire
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
3-5/32 in x 4-9/64 in
Caster Frame Material
Steel
Non-Marking
Yes
Caster Brake Included
No
Caster Temp. Range Available
Yes
Application
All Purpose Industrial and Commercial Casters
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
2-15/16 in x 4-1/8 in
Caster Brake Type
No Brake
Replacement Wheel
Mfr. No. RD 200/20K-VLI
Wheel/Tread Material
Rubber
Wheel Core Material
Steel
Operating Temperature Range
-25 Degrees To 80 Degrees C
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Load Rating Range
Light-Medium Duty
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Soft
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Gray
System of Measurement
Metric
Load Capacity
350 kg
Tread
Smooth
Accessories
Optional: RI-05.03 (Directional Lock)
ESD Conductive
No
Series
L Series
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Tread Color
Gray
Caster Mounting Type
Plate
Wheel Hardness Rating
56 Shore A
Load Capacity - Maximum
770 lb
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Solid
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 770 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
