  11. NSF-Listed Plate Caster, 700 lb. Ld Rating, Ball
Zoro Select NSF-Listed Plate Caster, 700 lb. Ld Rating, Ball P21S-UY040KP-14-WB-DL - main

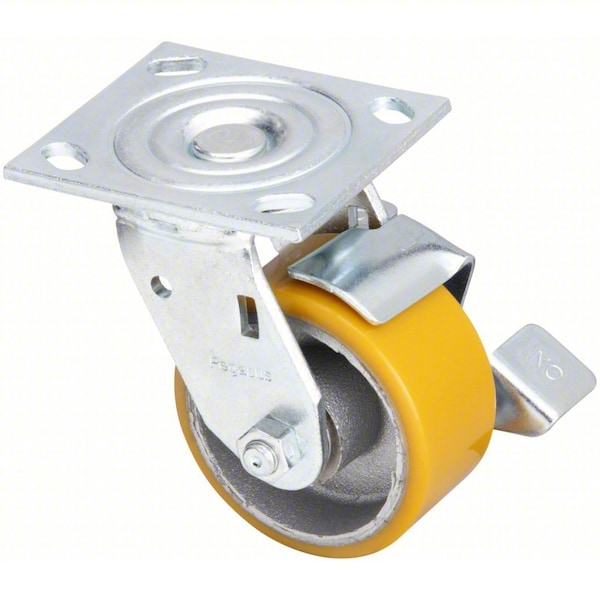

NSF-Listed Plate Caster, 700 lb. Ld Rating, Ball

  • Mfr # P21S-UY040KP-14-WB-DL

  • Zoro # G7279769

product price: $56.69
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock, Side Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-UY040KP-14-WB-DL
Zoro #
G7279769
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
5-5/8in
Swivel Radius
3-3/8 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in

Details

Item
Swivel Caster with Four Position Swivel Lock and Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock, Side Brake
Load Rating
700 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Standards
RoHS, ICWM, NSF
Caster Brake Included
Yes
Wheel Color
Yellow
Replacement Wheel
Mfr. No. P-UY-040x020/050KP
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Floor Protective
Extended Lead
No
Thread Guards
No
Includes
Strap Type Brake, 4-Position Directional Lock
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Firm
Load Rating Range
Light-Medium Duty
Swivel Lock Type
4-Position Directional Lock
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Load Capacity
700 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P21 Series
Tread
Standard
ESD Conductive
No
Tread Color
Yellow
Compatible With
P-UY-040X020/050KP
Load Capacity - Maximum
700 lb
Mounting Hole Type
Slot
Brake Location
Side
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
