  11. NSF-Listed Plate Caster, 700 lb. Ld Rating, Roller

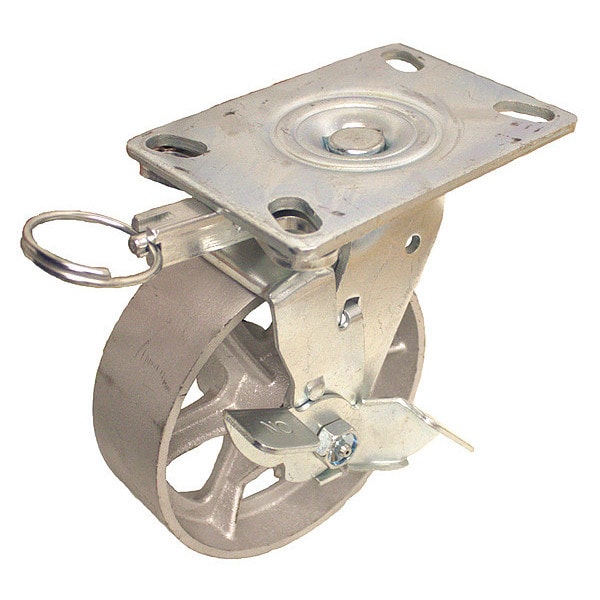

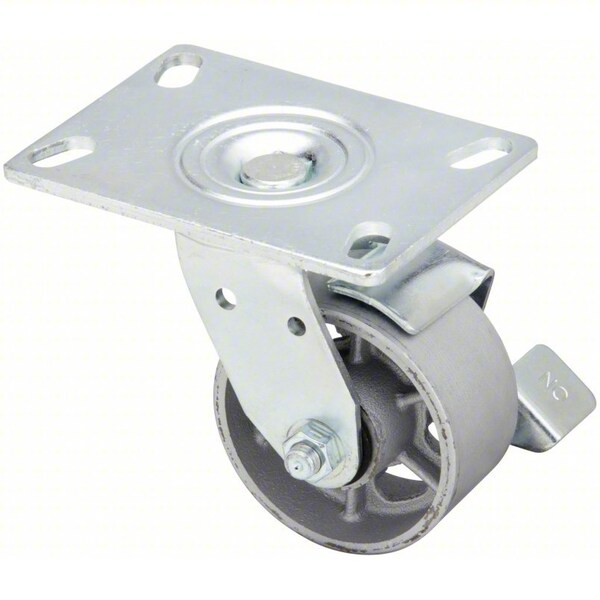

Zoro Select NSF-Listed Plate Caster, 700 lb. Ld Rating, Roller P21S-C040R-16-WB-DL - main

NSF-Listed Plate Caster, 700 lb. Ld Rating, Roller

  • Mfr # P21S-C040R-16-WB-DL

  • Zoro # G7279811

product price: $41.19
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
Directional Lock, Side Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-C040R-16-WB-DL
Zoro #
G7279811
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4-1/2in x 6-1/4in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
1/2 in
Overall Height
5-5/8in
Swivel Radius
3-3/8 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Length
4 1/2 in
For Axle Dia.
1/2 in

Details

Item
Swivel Caster with Four Position Swivel Lock and Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
Directional Lock, Side Brake
Load Rating
700 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Silver
Wheel Hardness Rating
180-220 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Frame Finish
Zinc Plated
Application
Retail, Industrial, Commercial
Extended Lead
No
Wheel Color
Silver
Caster Temp. Range Available
Yes
Thread Guards
No
Standards
RoHS, ICWM, NSF
Features
Push/Pull Force Reduction
Replacement Wheel
Mfr. No. P-C-040x020/050R
Caster Brake Included
Yes
Includes
Strap Type Brake, 4-Position Directional Lock
Includes Thread Guards
No
Load Rating Range
Light-Medium Duty
Wheel Core Material
Cast Iron
Swivel Lock Type
4-Position Directional Lock
Wheel/Tread Hardness Rating
Extra Hard
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Load Capacity
700 lb
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P21 Series
Tread Color
Silver
ESD Conductive
No
Compatible With
P-C-040X020/050R
Load Capacity - Maximum
700 lb
Caster Features
Corrosion-Resistant
Brake Location
Rear, Side
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Operating Temperature Range
Up To 800 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
