  6. Plate Caster, 1200 lb. Ld Rating, Ball

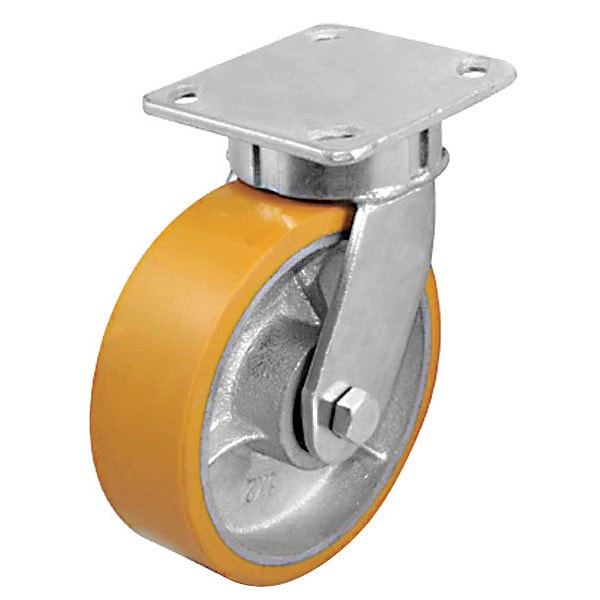

Zoro Select Plate Caster, 1200 lb. Ld Rating, Ball P25S-UY060KP-14-001 - main

Plate Caster, 1200 lb. Ld Rating, Ball

  • Mfr # P25S-UY060KP-14-001

  • Zoro # G1199360

product price:  $54.15
/ea

Key Features

Extended Lead
No
Core Color
Gray
Caster Sub-Type
Swivel
Wheel Dia.
6 in
Caster Temp. Range Available
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P25S-UY060KP-14-001
Zoro #
G1199360
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Overall Height
7-1/2in
Swivel Radius
4-9/16 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 in x 4-1/2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 in
Mounting Plate Thickness
0.236 in

Details

Extended Lead
No
Item
Kingpinless Swivel Caster
Core Color
Gray
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. P-UY-060x020/050KP
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Load Rating
1200 lb
Thread Guards
No
Standards
ANSI ICWM
Caster Plate Hole Pattern
B
Frame Finish
Zinc Plated
Number of Wheels
1
Features
Floor Protective
Caster Frame Material
Steel
Non-Marking
Yes
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Caster Brake Included
No
Wheel Color
Yellow
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Type
No Brake
Tread Shape
Standard
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpinless
Wheel Bearing Type
Precision Ball
Swivel Raceway Type
Single Ball
Wheel Core Material
Cast Iron
Load Rating Range
Medium Duty
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
System of Measurement
Inch
Series
P25 Series
Tread Color
Yellow
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Accessories
Optional: P-DL25-14 (Directional Lock)
Caster Mounting Type
Plate
Load Capacity
1200 lb
ESD Conductive
No
Load Capacity - Maximum
1,250 lb
Compatible With
P-UY-060X020/050KP
Wheel Hardness Rating
92 Shore A
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
