  11. Plate Caster, 1200 lb. Ld Rating, Roller

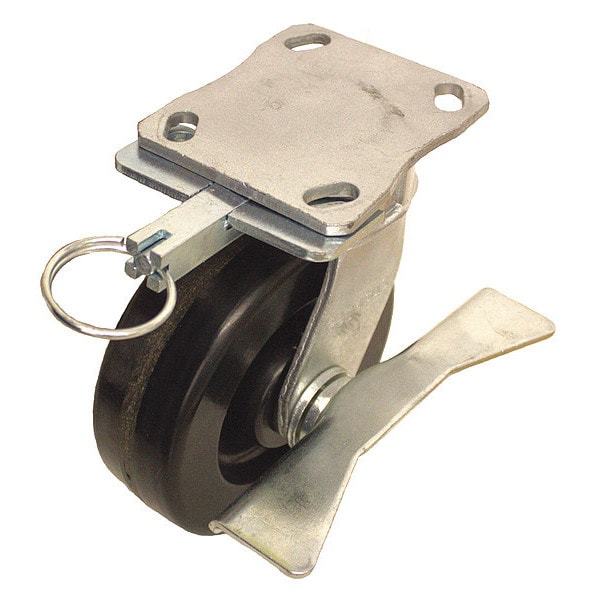

Zoro Select Plate Caster, 1200 lb. Ld Rating, Roller P25S-PH060R-14-CB-DL - main

Plate Caster, 1200 lb. Ld Rating, Roller

  • Mfr # P25S-PH060R-14-CB-DL

  • Zoro # G1199473

product price: $60.79
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
Directional Lock, Side Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P25S-PH060R-14-CB-DL
Zoro #
G1199473
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
4-9/16 in
Overall Height
7-1/2in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Width
3 in
Mounting Plate Width
4 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
3.625 in

Details

Item
Kingpinless Swivel Caster With Brake And Directional-Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
Directional Lock, Side Brake
Load Rating
1200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
Rockwell 102E
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Replacement Wheel
Mfr. No. P-PH-060x020/050R
Features
Floor Protective
Application
Retail, Industrial, Commercial
Thread Guards
No
Extended Lead
No
Standards
RoHS, ICWM
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Wheel Color
Black
Caster Brake Included
Yes
Includes
Pinch Type Brake, 4-Position Directional Lock
Load Rating Range
Medium Duty
Swivel Lock Type
4-Position Directional Lock
Wheel Core Material
Phenolic
Wheel/Tread Hardness Rating
Hard
Swivel Construction
Kingpinless
Swivel Raceway Type
Kingpinless Single Ball
Includes Thread Guards
No
Tread Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Load Capacity
1200 lb
Series
P25 Series
ESD Conductive
No
Compatible With
P-PH-060X020/050R
Load Capacity - Maximum
1,200 lb
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
Brake Location
Side
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature Range
-40 Degrees To 250 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
