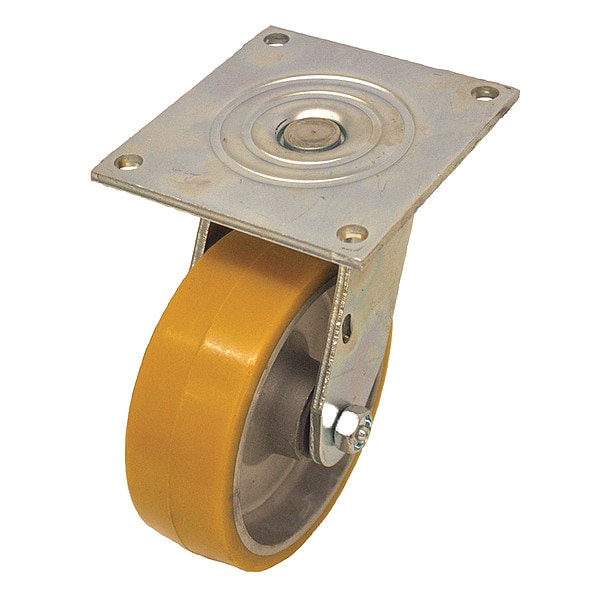

Zoro Select Plate Caster, 1250 lb. Ld Rating, Roller P21S-UA060R-15 - main

Plate Caster, 1250 lb. Ld Rating, Roller

  • Mfr # P21S-UA060R-15

  • Zoro # G7278472

product price:  $64.65
/ea

Key Features

Extended Lead
No
Load Rating
1250 lb
Thread Guards
No
Core Color
Silver
Replacement Wheel
Mfr. No. P-UA-060x020/050R
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-UA060R-15
Zoro #
G7278472
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Overall Height
7-1/2in
Swivel Radius
5 in
Mounting Bolt Dia.
3/8 in
Mounting Height
7 1/2 in
Mounting Plate Size
5in x 5-1/2in
For Axle Dia.
1/2 in
Mounting Plate Length
5 in
Mounting Plate Thickness
1/4in
Bolt Hole Spacing - Length
4.5 in
Overall Wheel Width
2 in
Bolt Hole Spacing - Width
4.125 in

Details

Extended Lead
No
Load Rating
1250 lb
Thread Guards
No
Core Color
Silver
Replacement Wheel
Mfr. No. P-UA-060x020/050R
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Frame Finish
Zinc Plated
Features
Floor Protective
Number of Wheels
1
Caster Temp. Range Available
Yes
Non-Marking
Yes
Caster Frame Material
Steel
Caster Sub-Type
Swivel
Caster Plate Hole Pattern
D
Standards
ANSI ICWM, NSF Listed
Item
Swivel Caster
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Brake Included
No
Wheel Color
Yellow
Caster Brake Type
No Brake
Load Rating Range
Medium-Duty
Wheel Core Material
Aluminum
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Number of Mounting Holes
4
Tread Shape
Standard
Wheel/Tread Hardness Rating
Firm
Wheel Bearing Type
Roller
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Caster Mounting Type
Plate
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P21 Series
Load Capacity
1250 lb
Tread Color
Yellow
ESD Conductive
No
Accessories
Optional: P-DL21-15 (Directional Lock)
Wheel Hardness Rating
92 Shore A
Compatible With
P-UA-060X020/050R
Load Capacity - Maximum
1,250 lb
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Mounting Hole Type
Hole
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
