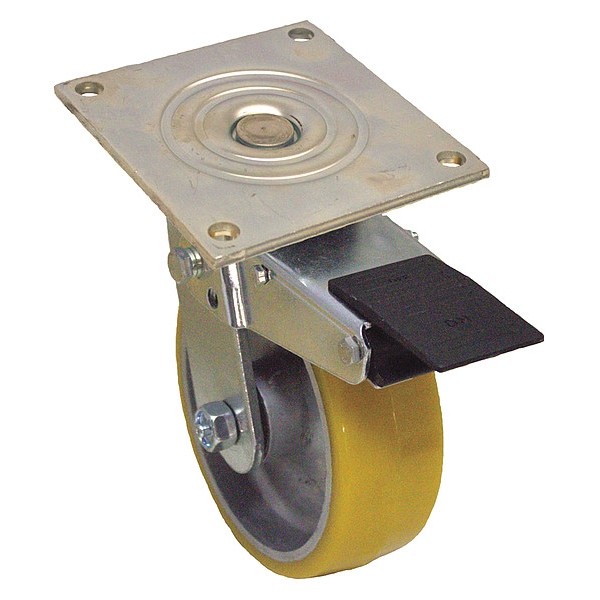

Zoro Select Plate Caster, 1250 lb. Ld Rating, Roller P21S-UA080R-15-TBF - main

Plate Caster, 1250 lb. Ld Rating, Roller

  • Mfr # P21S-UA080R-15-TBF

  • Zoro # G3317275

product price:  $83.19
/ea
Free Shipping & Returns

Key Features

Mounting Bolt Dia.
3/8 in
Caster Brake Type
Total Lock
Caster Plate Hole Pattern
D
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Temp. Range Available
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21S-UA080R-15-TBF
Zoro #
G3317275
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Swivel Radius
7 1/2 in
Overall Height
9-1/2in
Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
5 in x 5-1/2 in
Mounting Plate Length
5 in
Overall Wheel Width
2 in
Bolt Hole Spacing - Width
4.125 in
Mounting Plate Thickness
0.236 in
Bolt Hole Spacing - Length
4.5 in
For Axle Dia.
1/2 in

Details

Caster Brake Type
Total Lock
Caster Plate Hole Pattern
D
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Temp. Range Available
Yes
Caster Sub-Type
Swivel
Extended Lead
No
Replacement Wheel
Mfr. No. P-UA-080x020/050R
Item
Swivel Caster With Total-Lock
Frame Finish
Zinc Plated
Load Rating
1250 lb
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Non-Marking
Yes
Standards
ANSI ICWM, NSF Listed
Thread Guards
No
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Brake Included
Yes
Core Color
Silver
Features
Floor Protective
Wheel Color
Yellow
Number of Wheels
1
Caster Frame Material
Steel
Includes
Total-Lock
Wheel Bearing Type
Roller
Tread Shape
Standard
Load Rating Range
Medium Duty
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
Total Lock
Wheel Core Material
Aluminum
Swivel Construction
Kingpin
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Caster Mounting Type
Plate
Series
P21 Series
Load Capacity
1250 lb
Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Compatible With
P-UA-080X020/050R
Load Capacity - Maximum
1,250 lb
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Brake Location
Rear
Mounting Hole Type
Hole
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 1250 lb, Swivel Lock Type Total Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
