  11. Rgd Plate Caster, Rubber, 2 in., 110 lb.
Zoro Select Rgd Plate Caster, Rubber, 2 in., 110 lb. BPXA-VPA 50G - main

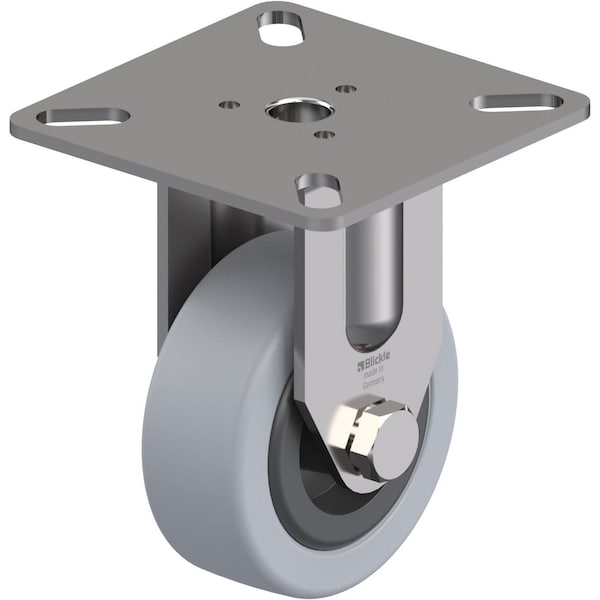

Rgd Plate Caster, Rubber, 2 in., 110 lb.

  • Mfr # BPXA-VPA 50G

  • Zoro # G4539035

product price: $21.89
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BPXA-VPA 50G
Zoro #
G4539035
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
2 in
Wheel Width
11/16 in
Mounting Height
2 13/16 in
Mounting Plate Size
2-3/8in x 2-3/8in
Mounting Plate Thickness
3/32in
Mounting Bolt Dia.
7/32 in
Overall Height
2-11/16in
Inside Slot Spacing - Length
38 mm
Overall Wheel Width
11/16 in
Mounting Plate Length
60 mm
For Axle Dia.
6 mm
Mounting Plate Width
60 mm
Bolt Hole Spacing - Length
1.5 in
Outside Slot Spacing - Length
48 mm
Inside Slot Spacing - Width
38 mm
Outside Slot Spacing - Width
48 mm

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
85 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Gray
Wheel Hardness Rating
80 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
48 mm x 48 mm
Inside Bolt Hole Spacing
38 mm x 38 mm
Caster Plate Hole Pattern
A
Replacement Wheel
Mfr. No. VPA 50/8G
Wheel Color
Gray
Extended Lead
No
Caster Temp. Range Available
No
Frame Finish
Stainless Steel
Caster Brake Included
No
Thread Guards
No
Application
Retail, Industrial, Commercial
Standards
RoHS, ICWM, NSF
Wheel/Tread Hardness Rating
Soft
Wheel Core Material
Nylon
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Load Rating Range
Medium-Duty
Load Capacity
40 kg
Tread Color
Gray
Tread
Standard
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Series
BPXA Series
Load Capacity - Maximum
90 lb
Compatible With
VPA 50/8G
Caster Features
Corrosion-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Wheel Core Type
Solid
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Rigid, Plate Caster, Load Rating 85 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 11/16 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
