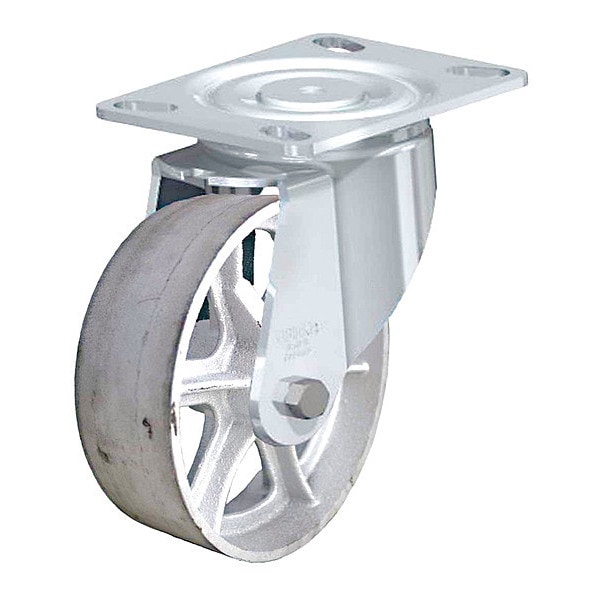

Plate Caster, 1250 lb. Load, Silver Wheel

  • Mfr # LH-C080R-16

  • Zoro # G5651307

product price:
$
135.99
/ea
Free Shipping & Returns

Key Features

Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Thread Guards
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Replacement Wheel
Mfr. No. P-C-080X020/050R
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-C080R-16
Zoro #
G5651307
UPC #
-
Country of Origin
Germany

Dimensions

Swivel Radius
6 7/16 in
Wheel Dia.
8 in
Overall Height
9-5/8"
Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Mounting Height
9 11/16 in
Mounting Plate Size
4-1/2in x 6-1/4in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Thickness
1/4 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Length
4 1/2 in

Details

Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Thread Guards
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Replacement Wheel
Mfr. No. P-C-080X020/050R
Wheel Color
Silver
Standards
DIN EN, ANSI ICWM, ISO 9001
Extended Lead
No
Caster Temp. Range Available
Yes
Non-Marking
Yes
Frame Finish
Zinc Plated
Features
Push/Pull Force Reduction
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Sub-Type
Swivel
Core Color
Silver
Caster Plate Hole Pattern
A
Item
Plate Caster
Caster Brake Included
No
Caster Brake Type
No Brake
Includes
Complete Caster
Load Rating
1250 lb
Caster Frame Material
Steel
Tread Shape
Standard
Wheel Core Material
Iron
Wheel Bearing Type
Roller
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Extra Hard
Load Rating Range
Medium-Duty
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel/Tread Material
Iron
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Silver
System of Measurement
Inch
Caster Mounting Type
Plate
Accessories
Optional: RI-05.16 (Directional Lock)
Load Capacity
1400 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Tread Color
Silver
Series
LH Series
Tread
Standard
Load Capacity - Maximum
1,400 lb
Compatible With
P-C-080X020/050R
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Wheel Hardness Rating
145 HB
Operating Temperature Range
Up to 800 Degrees F
Operating Temperature - Maximum
800 Degrees F

Description

Swivel, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
