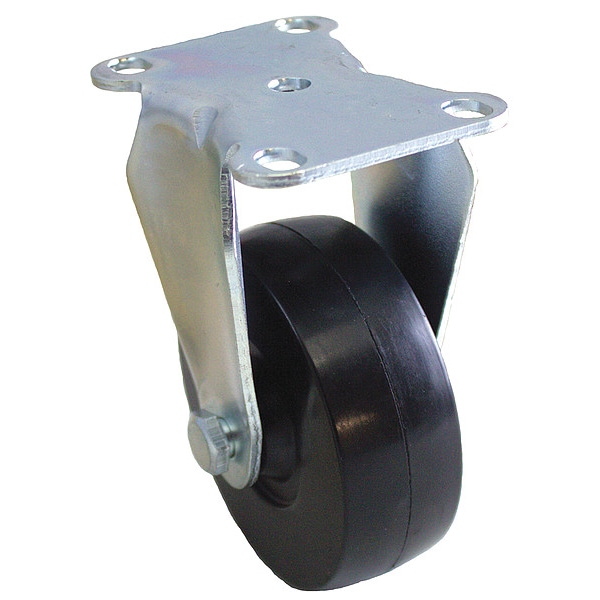

Zoro Select Plate Caster, 150 lb. Load Rating P12R-R035D-12 - main

Plate Caster, 150 lb. Load Rating

  • Mfr # P12R-R035D-12

  • Zoro # G2142849

product price:  $9.49
/ea

Key Features

Extended Lead
No
Thread Guards
No
Number of Wheels
1
Standards
DIN EN 12530
Swivel Radius
None- Rigid Caster
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12R-R035D-12
Zoro #
G2142849
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
None- Rigid Caster
Wheel Width
1 1/4 in
Overall Height
4-11/16in
Mounting Bolt Dia.
5/16 in
Wheel Dia.
3 1/2 in
Mounting Height
4 11/16 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Length
2 1/2 in
Mounting Plate Thickness
0.138 in
Outside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.813 in
For Axle Dia.
3/8 in

Details

Extended Lead
No
Thread Guards
No
Number of Wheels
1
Standards
DIN EN 12530
Caster Sub-Type
Rigid
Caster Plate Hole Pattern
C
Load Rating
150 lb
Features
Noise Reduction
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Frame Finish
Zinc Plated
Application
Cases, Food Service Racks, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Wheel Color
Black
Caster Temp. Range Available
Yes
Caster Brake Included
No
Item
Rigid Caster
Caster Brake Type
No Brake
Replacement Wheel
Mfr. No. P-P-035x013/038D
Wheel/Tread Hardness Rating
Soft
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Wheel Core Material
Rubber
Wheel Bearing Type
Delrin
Wheel/Tread Material
Solid Rubber
Tread Shape
Standard
Load Rating Range
Light Duty
Includes Thread Guards
No
Wheel/Tread Color
Black
System of Measurement
Inch
Tread
Standard
Caster Mounting Type
Plate
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
ESD Conductive
No
Tread Color
Black
Series
P12 Series
Load Capacity
150 lb
Wheel Hardness Rating
80 Shore A
Load Capacity - Maximum
300 lb
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Wheel Bearing Material
Delrin
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-20 Degrees To 125 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 150 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
