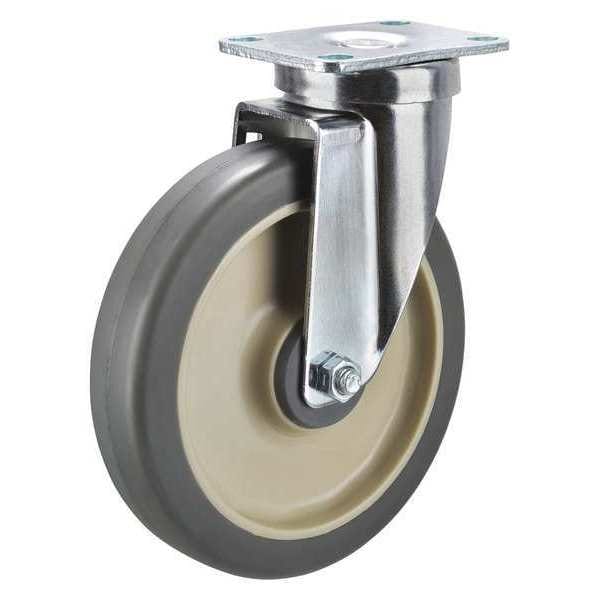

Swivel Plate Caster, 300 lb., Plate Type C

  • Mfr # P12S-PRP060K-12

  • Zoro # G0771714

product price:  $21.59
/ea

Key Features

Number of Wheels
1
Overall Height
7-1/4"
Wheel Color
Gray
Thread Guards
Yes
Caster Stem Type
No Stem/Plate Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12S-PRP060K-12
Zoro #
G0771714
UPC #
-
Country of Origin
China

Dimensions

Overall Height
7-1/4"
Stem Dia.
No Stem
Wheel Dia.
6 in
Wheel Width
1 1/4 in
Mounting Bolt Dia.
5/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Height
7 1/4 in
Swivel Radius
4-1/2 in
Mounting Plate Length
2 1/2 in
Inside Slot Spacing - Width
1.75 in
For Axle Dia.
3/8 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Thickness
5/32 in
Outside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.813 in

Details

Number of Wheels
1
Item
Plate Caster
Wheel Color
Gray
Thread Guards
Yes
Caster Stem Type
No Stem/Plate Included
Core Color
Gray
Non-Marking
Yes
Caster Plate Hole Pattern
C
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Frame Finish
Zinc Plated
Caster Sub-Type
Swivel
Caster Frame Material
Steel
Extended Lead
No
Caster Temp. Range Available
Yes
Application
Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Load Rating
300 lb
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Standards
ANSI ICWM
Includes
Dust Cover
Caster Brake Included
No
System of Measurement
Inch
Replacement Wheel
Mfr. No. P-PRP-060x013/038K
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Tread
Standard
Tread Color
Gray
Wheel/Tread Material
Rubber
Includes Thread Guards
Yes
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Load Rating Range
Light-Medium Duty
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Polyolefin
Tread Shape
Standard
Swivel Construction
Kingpin
Wheel/Tread Color
Gray
ESD Conductive
No
Load Capacity
325 lb
Series
P12 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Hardness Rating
65 Shore A
Load Capacity - Maximum
350 lb
Caster Features
Debris-Resistant
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature Range
-30 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
