  11. Plate Caster, 1650 lb. Ld Rating, Ball

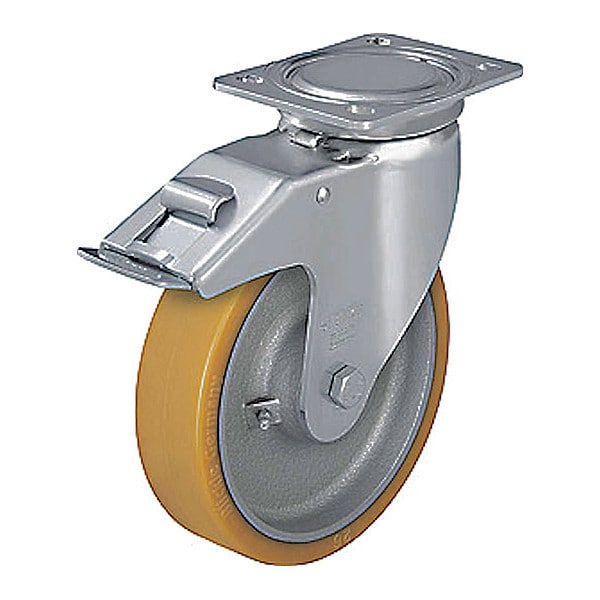

Zoro Select Plate Caster, 1650 lb. Ld Rating, Ball LUH-GTH 160K-FI - main

Plate Caster, 1650 lb. Ld Rating, Ball

  • Mfr # LUH-GTH 160K-FI

  • Zoro # G9463647

product price: $232.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Extrathane Polyurethane
Caster Brake Type
Total Lock
Wheel Dia.
6 5/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LUH-GTH 160K-FI
Zoro #
G9463647
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
6 5/16 in
Wheel Width
2 in
Mounting Height
7 15/16 in
Mounting Plate Size
110 mm x 140 mm
Mounting Plate Thickness
4.5 mm
Mounting Bolt Dia.
3/8 in
Overall Height
7-61/64in
Swivel Radius
141 mm
Mounting Plate Length
4 5/16 in
Outside Slot Spacing - Length
4.125 in
Outside Slot Spacing - Width
3.156 in
Inside Slot Spacing - Length
4.125 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.969 in
For Axle Dia.
12 mm

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Extrathane Polyurethane
Caster Brake Type
Total Lock
Load Rating
1650 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
80 mm x 105 mm
Inside Bolt Hole Spacing
75 mm x 105 mm
Caster Plate Hole Pattern
C
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Load Rating Range
Medium Duty
Swivel Raceway Type
Precision Ball
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
Total Lock
Accessories
Optional: RI-05.03 (Directional Lock)
Load Capacity
750 kg
Standards
RoHS, ICWM
Caster Temp. Range Available
Yes
Series
LU Series
Wheel Color
Yellow
Tread Color
Light Brown
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Replacement Wheel
Mfr. No. GTH 160/20K
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Included
Yes
Includes
Stop-Fix Total-Lock Brake
Thread Guards
No
Features
Floor Protective
Frame Finish
Zinc Plated
Extended Lead
No
ESD Conductive
No
Compatible With
GTH 160/20K
Load Capacity - Maximum
1,765 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Brake Location
Rear
Wheel Core Type
Solid
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel, Plate Caster, Load Rating 1650 lb, Swivel Lock Type Total Lock, Wheel Dia. 6 5/16 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
