  11. Plate Caster, 175 lb. Ld Rating, Delrin
Zoro Select Plate Caster, 175 lb. Ld Rating, Delrin P12R-R050D-12 - main

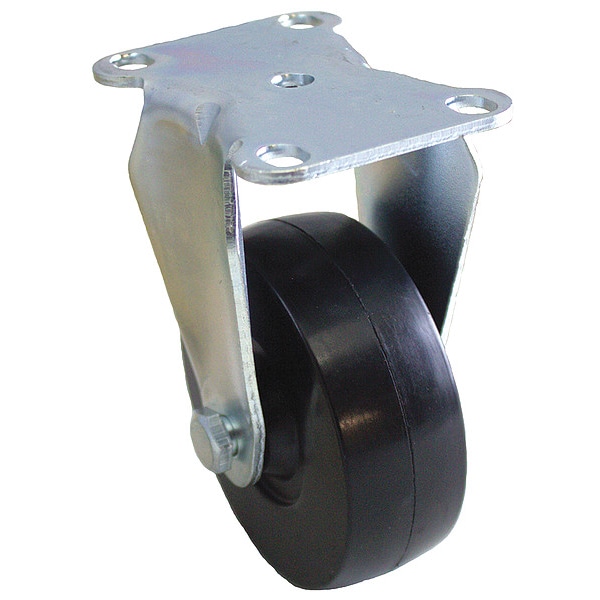

Plate Caster, 175 lb. Ld Rating, Delrin

  • Mfr # P12R-R050D-12

  • Zoro # G1620429

product price: $15.99
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12R-R050D-12
Zoro #
G1620429
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1 1/4 in
Mounting Height
6 3/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
6-3/16in
Swivel Radius
None- Rigid Caster
Inside Slot Spacing - Length
2.813 in
For Axle Dia.
3/8 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
Outside Slot Spacing - Width
1.75 in
Overall Wheel Width
1 1/4 in
Mounting Plate Length
2 1/2 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
175 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Delrin
Wheel/Tread Color
Black
Wheel Hardness Rating
80 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Application
Retail, Industrial, Commercial
Standards
RoHS, ICWM, NSF
Replacement Wheel
Mfr. No. P-R-050x013/038D
Features
Noise Reduction
Wheel Color
Black
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Caster Brake Included
No
Extended Lead
No
Thread Guards
No
Load Rating Range
Light-Duty
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Wheel Core Material
Rubber
Tread Color
Black
ESD Conductive
No
Tread
Standard
Load Capacity
175 lb
Series
P12 Series
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Compatible With
P-R-050X013/038D
Load Capacity - Maximum
350 lb
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Delrin
Mounting Hole Type
Slot
Operating Temperature Range
-20 Degrees To 125 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Rigid, Plate Caster, Load Rating 175 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
