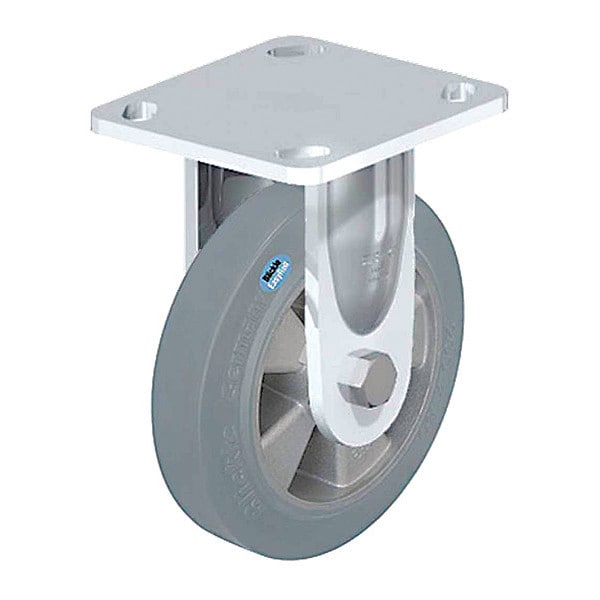

Zoro Select Plate Caster, 660 lb. Ld Rating, Rigid BES-ALEV 200K-14-SG - main

Plate Caster, 660 lb. Ld Rating, Rigid

  • Mfr # BES-ALEV 200K-14-SG

  • Zoro # G5565931

product price:  $108.99
/ea
Free Shipping & Returns

Key Features

Non-Marking
Yes
Inside Bolt Hole Spacing
3 in x 3 in
Wheel Dia.
8 in
Frame Finish
Zinc Plated
Features
Noise Reduction
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
BES-ALEV 200K-14-SG
Zoro #
G5565931
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 in
Overall Height
9-1/4in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Height
9 1/4 in
Inside Slot Spacing - Length
3 in
Overall Wheel Width
2 in
Mounting Plate Thickness
0.217 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
12 mm
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 in

Details

Non-Marking
Yes
Inside Bolt Hole Spacing
3 in x 3 in
Frame Finish
Zinc Plated
Features
Noise Reduction
Number of Wheels
1
Extended Lead
No
Caster Brake Included
No
Includes
Complete Caster
Item
Rigid Caster
Caster Brake Type
No Brake
Core Color
Silver
Caster Sub-Type
Rigid
Load Rating
660 lb
Standards
DIN EN, ANSI ICWM, ISO 9001
Wheel Color
Gray
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
Caster Frame Material
Steel
Application
Engine Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Thread Guards
No
Replacement Wheel
Mfr. No. ALEV 200/20K-SG
Number of Mounting Holes
4
Includes Thread Guards
No
Load Rating Range
Medium Duty
Wheel Core Material
Aluminum
Tread Shape
Standard
Wheel Bearing Type
Precision Ball
Wheel/Tread Hardness Rating
Soft
Swivel Lock Type
No Lock Included
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Wheel/Tread Color
Gray
System of Measurement
Inch
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Caster Mounting Type
Plate
Series
BES Series
Tread Color
Gray
ESD Conductive
No
Load Capacity
660 lb
Wheel Hardness Rating
65 Shore A
Load Capacity - Maximum
660 lb
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Solid
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 175 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Rigid, Plate Caster, Load Rating 660 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
