  11. Plate Caster, 210 lb. Load Rate, 3-13/16"H

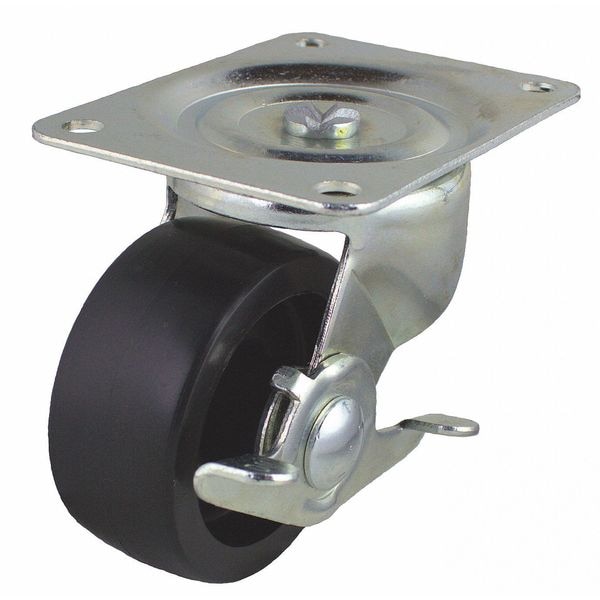

Zoro Select Plate Caster, 210 lb. Load Rate, 3-13/16"H P2S-PB030G-P-SB - main

Plate Caster, 210 lb. Load Rate, 3-13/16"H

  • Mfr # P2S-PB030G-P-SB

  • Zoro # G3339049

product price: $18.69
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polypropylene
Caster Brake Type
Side Brake
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P2S-PB030G-P-SB
Zoro #
G3339049
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1 1/4 in
Mounting Height
3 13/16 in
Mounting Plate Size
3-1/8 in x 4-1/8 in
Mounting Plate Thickness
0.079 in
Mounting Bolt Dia.
5/16 in
Overall Height
3-13/16in
Swivel Radius
3-15/16 in
Outside Slot Spacing - Length
3.438 in
Inside Slot Spacing - Length
3.375 in
Inside Slot Spacing - Width
2.375 in
Overall Wheel Width
1 1/4 in
For Axle Dia.
5/16 in
Mounting Plate Length
3 1/8 in
Outside Slot Spacing - Width
2.375 in

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polypropylene
Caster Brake Type
Side Brake
Load Rating
210 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/8 in x 3-7/16 in
Inside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Caster Plate Hole Pattern
C
Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Thread Guards
No
Extended Lead
No
Application
Retail, Industrial, Commercial, Corrosion Resistance
Frame Finish
Zinc Plated
Wheel Color
Black
Includes
Pinch Type Brake
Standards
RoHS, ICWM
Wheel/Tread Hardness Rating
Hard
Swivel Construction
Kingpin
Swivel Raceway Type
Single Ball
Wheel Core Material
Polypropylene
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Load Rating Range
Light Duty
Tread Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
210 lb
Tread
Standard
Series
P2 Series
ESD Conductive
No
Load Capacity - Maximum
210 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Brake Location
Side
Caster Features
Corrosion-Resistant, Maintenance Free
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-20 Degrees To 180 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 210 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
